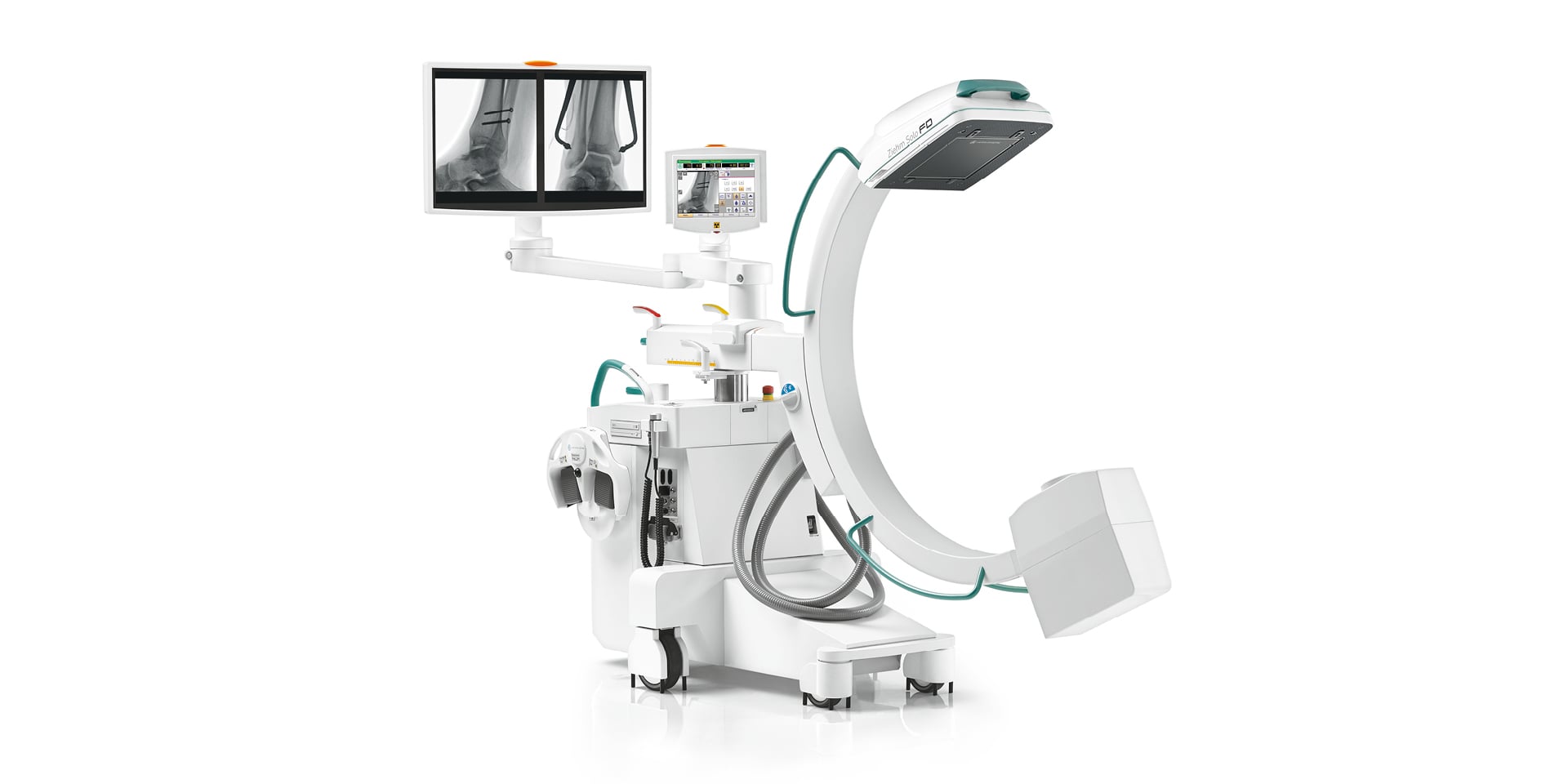

Ziehm Solo FD

Versatile design meets latest flat-panel technology

As space is often limited in surgical centers and ORs in hospitals and at the same time OR equipment is becoming more extensive, space-saving and mobile imaging systems are increasingly in demand.

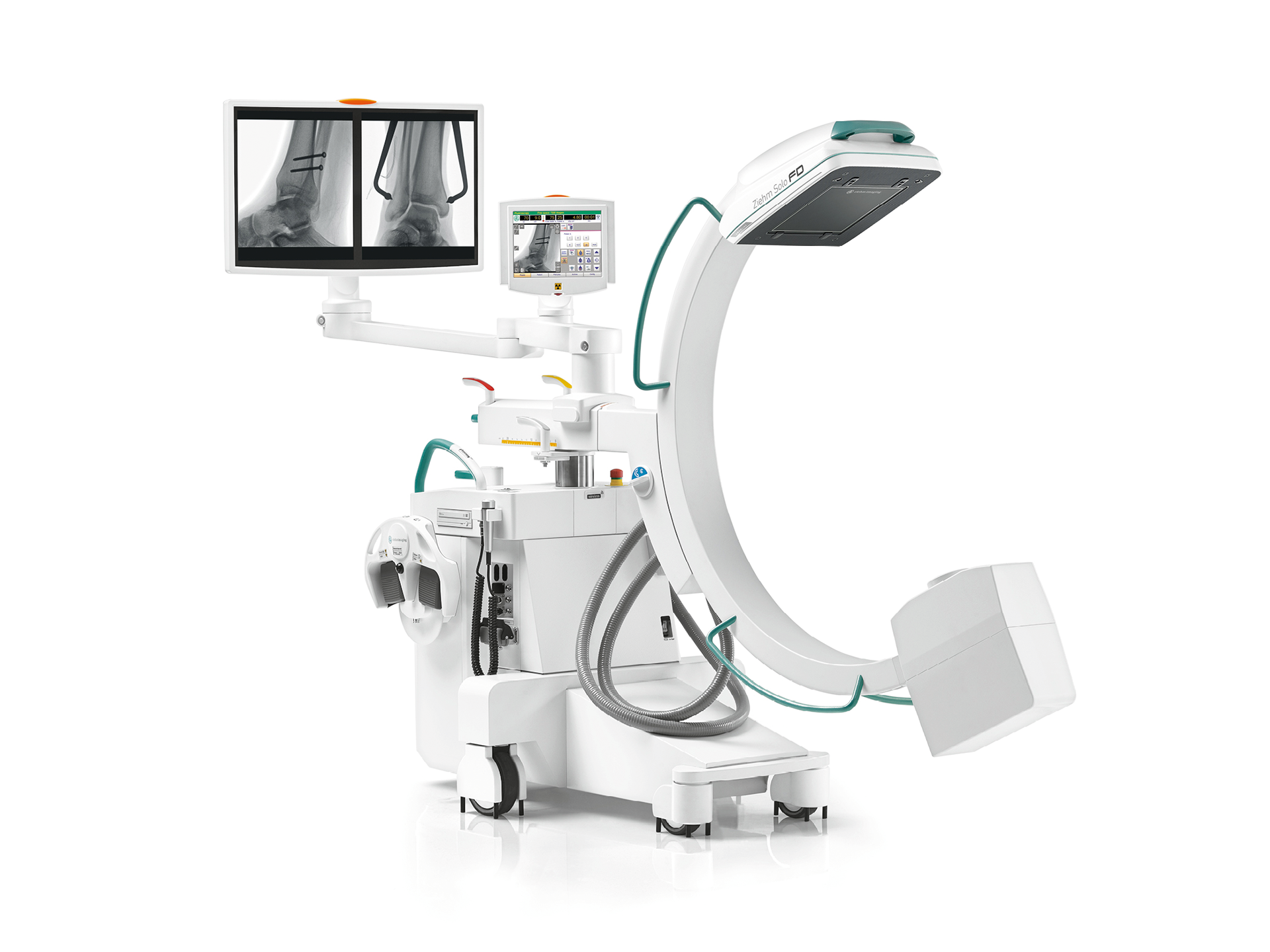

With its all-in-one design, the Ziehm Solo FD is one of the most compact C-arms on the market, making it suitable for even the smallest treatment scenarios.

Equipped with the latest CMOS flat-panel technology¹, it covers a wide range of applications. As an option, a large 31 cm x 31 cm flat-panel allows the visualization of larger anatomical regions in orthopedic and vascular interventions.

Achieve significantly more details with CMOS flat-panel technology

Higher spatial resolution due to smaller pixel sizes of CMOS technology
Latest CMOS flat-panel technology
Pulsed 2.4 kW monoblock generator for a high performance level

Ensure maximum flexibility with a versatile design

Compact all-in-one design without the need for a monitor cart
Different equipment variants for maximum flexibility thanks to detector sizes 21 cm x 21 cm or 31 cm x 31 cm
Cost-effective entry-level version Ziehm Solo FD lite¹ available with special option package
165 degrees of orbital movement and 87 cm C-arm opening for quick and easy positioning

Optimize process efficiency with advanced clinical workflows

Wireless Freedom concept to increase efficiency and safety in the OR
Color-coded scales and handles for clear communication in the OR
Open Ziehm NetPort interface with WLAN for easy integration into existing IT networks

Reduce exposure significantly with the next-generation SmartDose²

Comprehensive concept for high image quality and minimized dose
Automatic optimization of dose and image quality with advanced anatomical programs
Dedicated functions to significantly reduce the dose for pediatric procedures³
Beam Filtration⁴ for reduced patient entrance dose without compromising on image quality for all CMOSline systems⁵

The best clinical images of
Ziehm Solo FD

More info

Find out more about the versatile possibilities in clinical use

Product Brochure

Ziehm Solo FD

Reading duration: 10 min.

Open PDF

Whitepaper

Driving the paradigm shift in innovative flat-panel detector technology, introducing CMOS on mobile full-size C-arms

Reading duration: 10 min.

Open PDF

Product Video

Ziehm Solo FD

Video length: 0:48 min.

Individual Upgrades for your requirements

Hardware-Upgrades

Software-Upgrades

Packages

Remote Solo Center (RSC)

Synchronized second Solo Center

Removable Grid

Lower dose for peripheral or dose-sensitive procedures

Ziehm Viewing Station

Additional monitor cart with touchscreen

Wireless Dual-Plus Footswitch

Wireless control of all imaging functions

All Hardware-Upgrades

Anatomical Marking Tool (AMT)

Colored markings and annotations on live images

Cineloop

Visualization of multiple fluoroscopy images in a short clip

Measurement Function

Precise measurement of distances, angles, and vessel lumen

All Software-Upgrades

Field Transport Solution

Improved mobility with all-terrain wheels

HIPAA Security Package

The HIPAA Security Package includes features such as user authentication and logging of access operations.

All Packages

Technical specifications

Imaging technology

Ziehm Solo FD, CMOS, flat-panel, 21 cm x 21 cm

Ziehm Solo FD, IGZO, flat-panel, 31 cm x 31 cm

Ziehm Solo FD, IGZO, flat-panel, 21 cm x 21 cm

Ziehm Solo FD lite: IGZO, flat-panel, 21 cm x 21 cm

Resolution

CMOS: 2 k x 2 k (21 cm x 21 cm)

IGZO: 1.5 k x 1.5 k (21 cm x 21 cm)

IGZO: 2 k x 2 k (31 cm x 31 cm)

Power generator

2.4 kW, pulsed monoblock generator

Ziehm Usability Concept

SmartDose

Advanced Heat Management

Orbital Movement

165 degrees

Our extensive range of training courses and services

Empower yourself and your team to achieve top performance

To Ziehm Academy

Find individual solutions for the best performance of your C-arm

To Global Service

Are you curious for more?
We are looking forward to getting your inquiry!

Disclaimer

¹
This product / feature may not be commercially available in all countries. For regulatory reasons, the availability of each feature may vary. Please contact your local Ziehm Imaging representative for detailed information.
²
The SmartDose Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
³
Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07.
⁴
The Beam Filtration technology reduces dose exposure for all CMOSline systems compared to conventional filtration techniques (Status before September 2017). Data on file. Results may vary.
⁵
The CMOSline is a system configuration based on the Ziehm Imaging CMOS flat-panel detector.
