Ziehm Vision RFD 3D
Contact Us
Product brochure
Exceptional clarity at minimum dose
Exceptional clarity at minimum dose
With more than 2,500 systems installed and over 20 years of 3D expertise, the Ziehm Vision RFD 3D sets a benchmark in mobile intraoperative imaging. It provides exceptional image quality in 2D and 3D at minimized dose, ensuring reliable intraoperative control.
Its precise imaging helps to reduce postoperative CT scans and costly revisions, supporting consistent quality and cost efficiency. Its intuitive operation streamlines daily workflows and facilitates smooth handling in demanding surgical environments. This 3D C-arm is ideal for advanced orthopedic procedures as well as specialized cochlear, maxillofacial, and bronchoscopy applications.
Interested in first-hand experience? Read related stories from our IMAGING magazine you could be interested in.
Exceptional 2D and 3D image quality at the lowest possible dose
- More distinguishable anatomy in 3D reconstruction with ZIR (Ziehm Iterative Reconstruction) to minimize fan and metal artifacts
- Maximized clinical precision in 2D with QuantumStream – the first true 2k2k imaging chain
- Significantly reduced exposure in 3D thanks to four tailored dose modes and advanced measures such as intelligent current adjustment and optimized voltage settings
- Significantly reduced exposure in 2D thanks to the SmartDose1 concept
Broaden your clinical perspective with multidisciplinary 2D and 3D imaging
- Orthopedic, trauma and spinal surgery: artifact-free visualization of implants, clear assessment of complex fractures, secure verification of screw length and direction
- Craniomaxillofacial surgery: artifact-free visualization of implants, symmetry verification of reconstructed anatomy, easier adjustment of bone fragments thanks to surface rendering
- Cochlear implantations: artifact-free visualization of 0.3 mm electrode structures, assessment of insertion status, anatomy-based adjustment of the center frequencies of each electrode contact

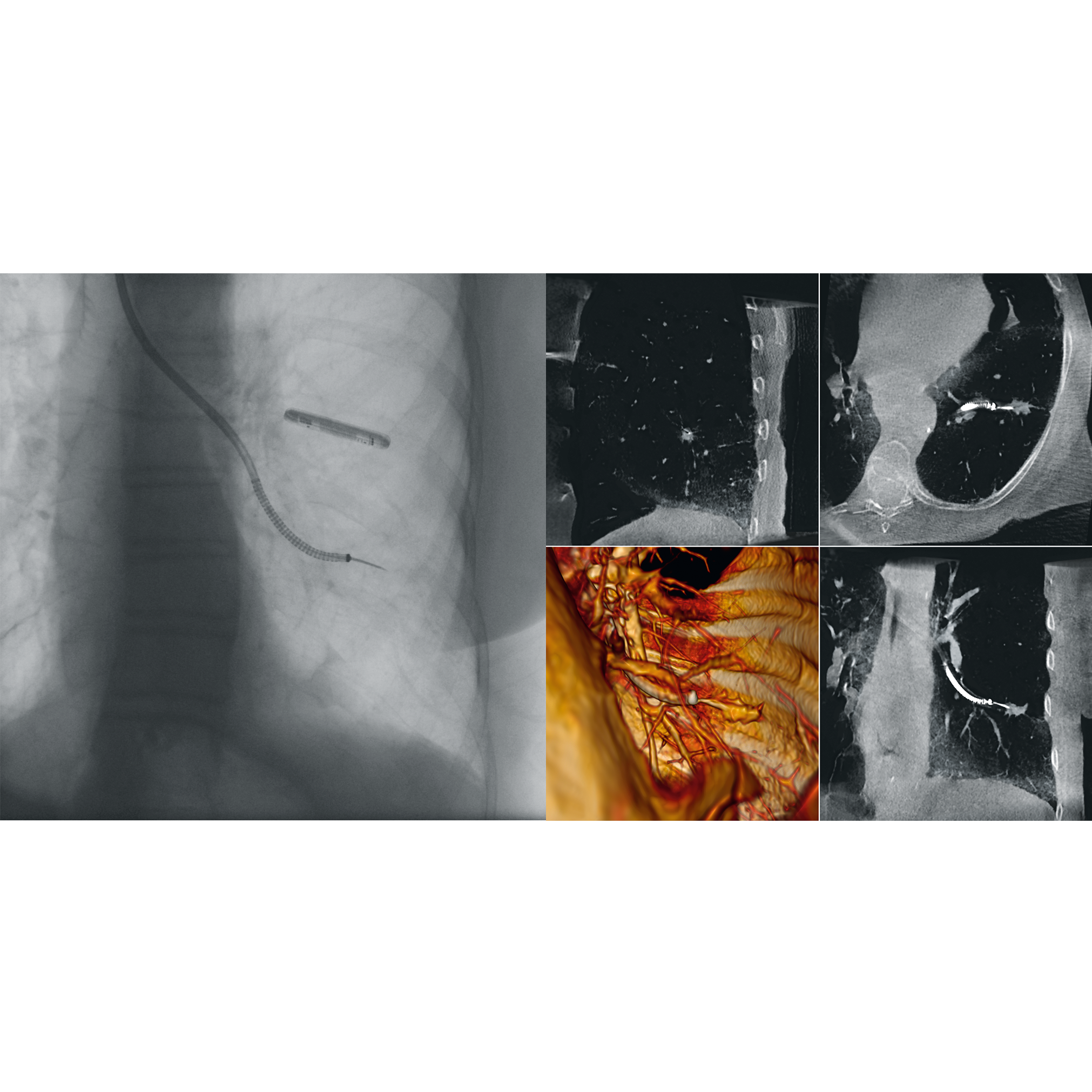

- Bronchoscopy: first C-arm with a specially developed anatomical program in 2D and 3D, artifact-free position control of needle and lesion
- Cardiology: razor-sharp 2D images for coronary angio, electrophysiology, and structural heart procedures
- Vascular surgery: confirmation of stent positioning and proper unfolding in 3D; Endovascular Navigation2 for image fusion and navigation in 2D
Advanced 3D imaging through intelligent scan mechanics and tailored volume sizes
- Full 3D image information without compromise thanks to the SmartScan technology
- Unmatched flexibility thanks to variable isocenter in 3D: two uniquely engineered scan movements cover body-centered as well as lateral anatomy – collision-free and with a perfectly centered ROI
- Perfect volume size for each application: From 10 cm Zoom-in/Cochlea package to the larger field of view with the new 25 cm volume3
Intuitive control for faster and safer workflows
- From setup to 3D reconstruction in less than three minutes
- Fast and reproducible positioning workflow with PositionPilot: Full control of C-arm and OR table
- Smooth and safe workflow without collisions thanks to Distance Control

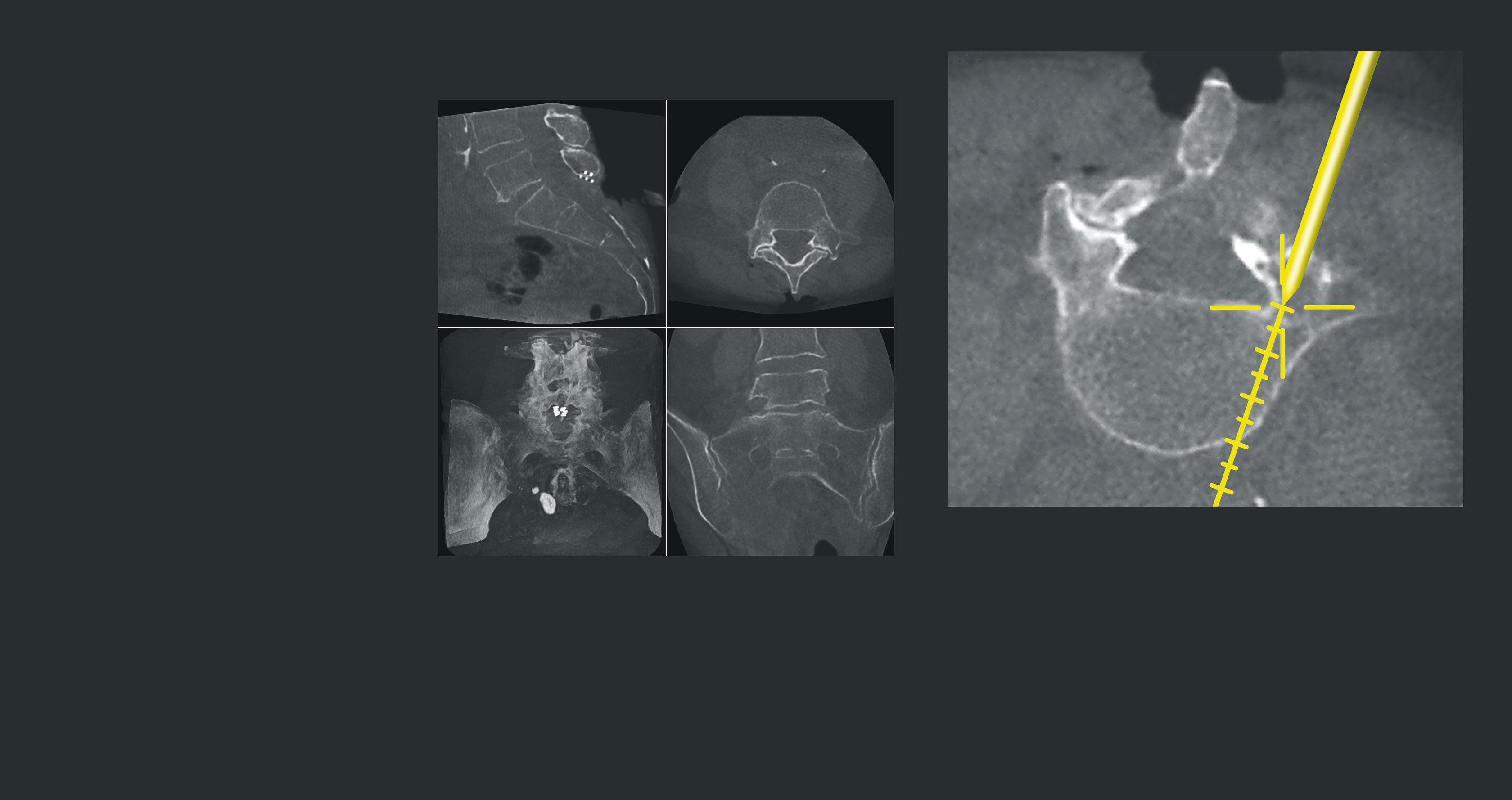

- Open Ziehm Naviport 3D interface for easy and reliable image-guided navigation and robot-guided surgery
- Prolonged use with Advanced Active Cooling to ensure consistent system temperature – even during lengthy, demanding procedures
- The Ziehm Usability Concept4 combines an excellent set of hardware features with seamlessly integrated software functionalities
The best clinical images of the Ziehm Vision RFD 3D
More info
Find out more about the many different possible applications in clinical use
Case-Report
Reading duration: 12 min.
Case-Report
Reading duration: 12 min.
Whitepaper
Reading duration: 10 min.
Whitepaper
Reading duration: 10 min.
Whitepaper
Reading duration: 10 min.
Whitepaper
Reading duration:
Whitepaper
Reading duration: 12 min.
Whitepaper
Reading duration: 15 min.
Whitepaper
Reading duration: 15 Min.
Flyer
Reading duration: 2 min.
Product Video
Video length: 0:46 min.
Individual Upgrades for your requirements
Position Control Center (PCC) and Distance Control
Faster and isocentric movement of the C-arm directly from the sterile field, including non-contact collision protection.
Remote Vision Center (RVC)
Synchronized third Vision Center
3D Image fusion with Therenva EndoNaut
Intraoperative navigation system with image fusion to optimize endovascular procedures
Removable Grid
Lower dose for peripheral or dose-sensitive procedures
Larger Field of View
For better visualization of large anatomical regions in 3D imaging
Enhanced Screw Visualisation (ESV)
Intuitive localization of placed screws in 3D imaging
Anatomical Marking Tool (AMT)
Colored markings and annotations on live images
Enhanced Vessel Visualisation (EVV)
Automated vessel detection during vascular interventions
CO2-Package
Innovative and cost-efficient alternative to conventional iodinated contrast agent
Cochlea-Package and Zoom-in Function
High-resolution visualization of the cochlea structure in the inner
ear or the finest details in maxillofacial surgery
SmartVascular Workflow
A special workflow for complex vascular procedures.
Cardio Packages
Especially for cardiology interventions in a mobile CathLab
Technical specifications
Imaging technology
CMOS, flat-panel, 31 cm x 31 cm
a-Si, flat-panel, 30 cm x 30 cm
3D volume size / voxels (CMOS)
16 cm x 16 cm x 16 cm; 320³ / 512³ voxels
optional: 10 cm x 10 cm x 10 cm; 320³ / 512³ voxels
optional: 19.8 cm x 19.6 cm x 18.0 cm; 320³ / 512³ voxels
optional: 24.9 cm x 19.6 cm x 24.9 cm; 3203 / 5123 voxels
3D volume size / voxels (a-Si)
16 cm x 16 cm x 16 cm; 320³ voxels
optional: 10 cm x 10 cm x 10 cm; 3203 voxels
optional: 19.8 cm x 19.6 cm x 18.0 cm; 320³ voxels
optional: 24.9 cm x 19.6 cm x 24.9 cm; 3203 voxels
Detector resolution
CMOS: 3k x 3k
a-Si: 1.5k x 1.5k
Image Chain
CMOS: 2k x 2k (QuantumStream)
a-Si: 1k x 1k
Image Insights
CMOS: yes
a-Si: no
Power generator
CMOS: 30 kW, pulsed monoblock generator
a-Si: 25 kW, pulsed monoblock generator
Motorization
Full control of the 4 motorized axes
Advanced Active Cooling
Ziehm Usability Concept
SmartDose
3D scanned information
180 degrees (SmartScan)
Open navigation interface
Brainlab, Globus Medical, Medacta, Medtronic, NuVasive, Stryker
Vascular Image Fusion
CMOS: Stand-alone solution with Therenva EndoNaut5 / Integrated solution with Endovascular Navigation2
a-Si: Stand-alone solution with Therenva EndoNaut5
Interested in learning more?
We are looking forward to getting your inquiry!
Disclaimer
Ziehm Imaging and Therenva are constantly improving their products and reserve the right to change the specifications without notice. Presented data are subject to tolerances. The product descriptions and images mentioned herein may include optional hardware and software features, which may vary by country. The products / features mentioned herein may not be commercially available in all countries and / or may not be available for sale in the United States due to lacking FDA clearance. Some of them may currently be under development. Due to regulatory reasons future availability cannot be guaranteed. Therenva SAS is a subsidiary of Ziehm Imaging GmbH. Please contact your local Ziehm Imaging sales representative for detailed information.
-
