The new imaging standard in surgery

Ziehm Vision FD

Hospitals and outpatient surgery centers around the world face the challenge of operating cost-effectively and adding demanding procedures, such as vascular interventions, to their case mix. The Ziehm Vision FD is the ideal solution for this purpose.

In the CMOSline1,2 version, the Ziehm Vision FD features state-of-the-art CMOS flat-panel technology for excellent image quality and, thanks to its liquid cooling, is even suitable for long-lasting procedures. It is also optionally available with a 31 cm x 31 cm a-Si flat-panel, which allows the visualization of larger anatomical regions in orthopedic and vascular interventions.

Ziehm Vision FD

CMOS imaging excellence thanks to over 15 years of flat-panel performance

  • Latest CMOS flat-panel technology

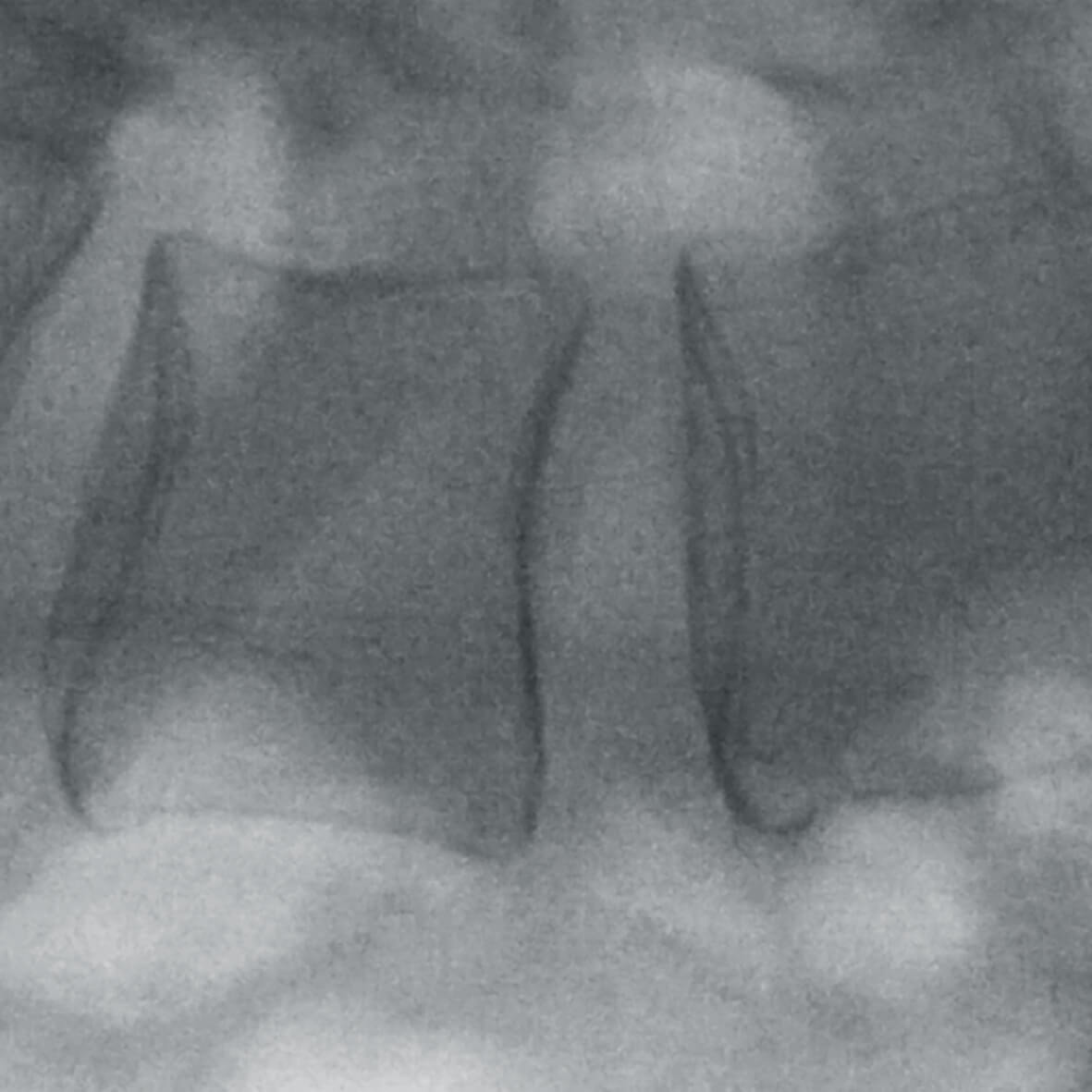

  • Reduced image noise, crystal-clear images in magnification modes, and enhanced dose management
  • New standard for state-of-the-art intraoperative visualization
Ziehm Vision FD

Extend your clinical case mix with enhanced cooling capabilities

Ziehm Vision FD

Benefit from seamless integration through finely tuned workflows

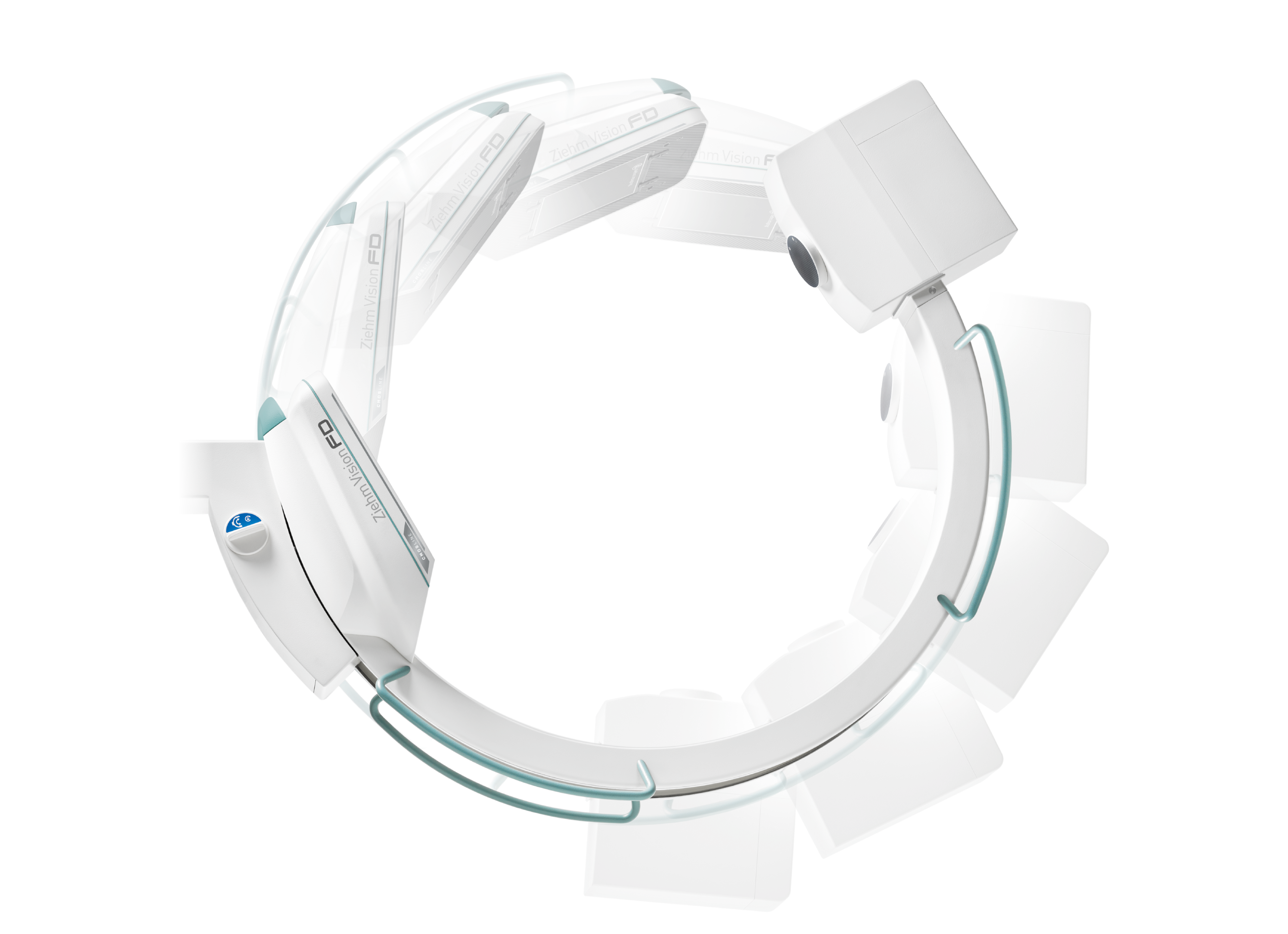

  • Best-in-class ergonomics with a footprint of only 0.8 m² and 165 degrees of orbital movement
  • Intuitive and finely tuned workflows for a consistently high and reliable level of quality
  • Wireless Freedom concept to increase efficiency and safety in the OR
Ziehm Vision FD

Reduce exposure significantly with the next-generation SmartDose3

  • Comprehensive concept for high image quality and minimized dose
  • Automatic optimization of dose and image quality with advanced anatomical programs
  • Dedicated functions to significantly reduce the dose for pediatric procedures4
  • Beam Filtration5 for reduced patient entrance dose without compromising on image quality

Find out more about the many different possible applications in clinical use

Ziehm Vision FD

Product Brochure

Ziehm Vision FD

Reading duration: 10 min.

Ziehm Vision FD

Whitepaper

Dose Management for 2D Imaging at Ziehm Imaging

Reading duration: 12 min

Ziehm Vision FD

Product Video

Ziehm Vision FD

Video length: 0:48 min.

Technical specifications

Imaging technology

CMOS, flat-panel, 21 cm x 21 cm

a-Si, flat-panel, 31 cm x 31 cm

IGZO, flat-panel 21 cm x 21 cm

Resolution

CMOS: 2 k x 2 k

a-Si: 2 k x 2 k

IGZO: 1.5 k x 1.5 k

Power generator

2.4 kW, pulsed monoblock generator

Advanced Active Cooling

check icon

Ziehm Usability Concept

check icon

SmartDose

check icon

Orbital Movement

165 degrees

Our extensive range of training courses and services

Ziehm Vision FD

Empower yourself and your team to achieve top performance

Ziehm Vision FD

Find individual solutions for the best performance of your C-arm

Are you curious for more?
We are looking forward to getting your inquiry!

Disclaimer

  • 1

    The CMOSline is a system configuration based on the Ziehm Imaging CMOS flat-panel detector.

  • 2

    This product/feature may not be commercially available in all countries. For regulatory reasons, the availability of each feature may vary. Please contact your local Ziehm Imaging representative for detailed information.

  • 3

    The SmartDose Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.

  • 4

    Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07.

  • 5

    The Beam Filtration technology reduces dose exposure for all CMOSline systems compared to conventional filtration techniques (Status before September 2017). Data on file. Results may vary.
