Versatile design meets latest flat-panel technology

Ziehm Solo FD

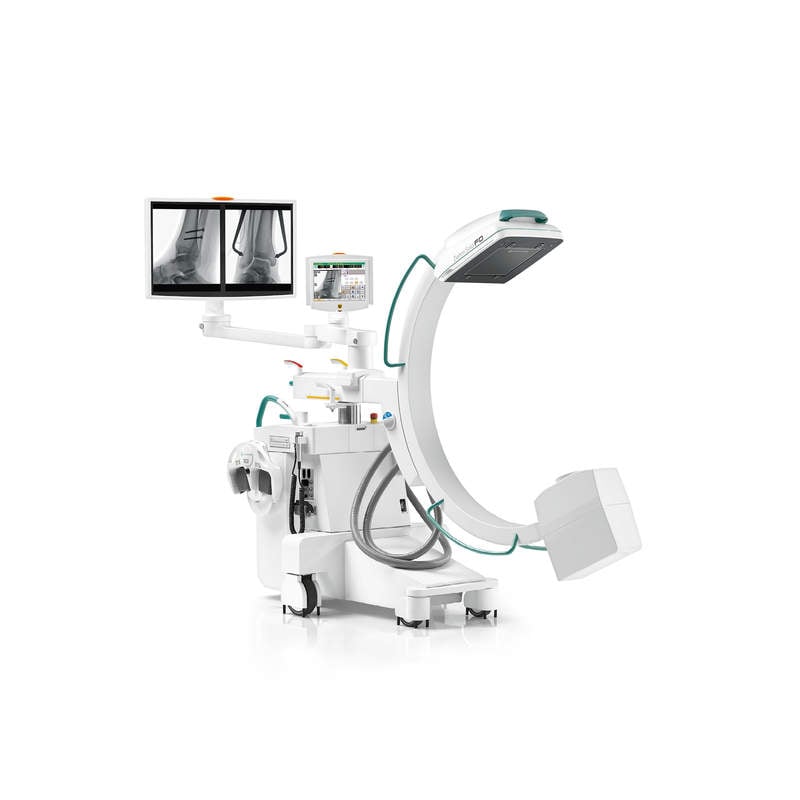

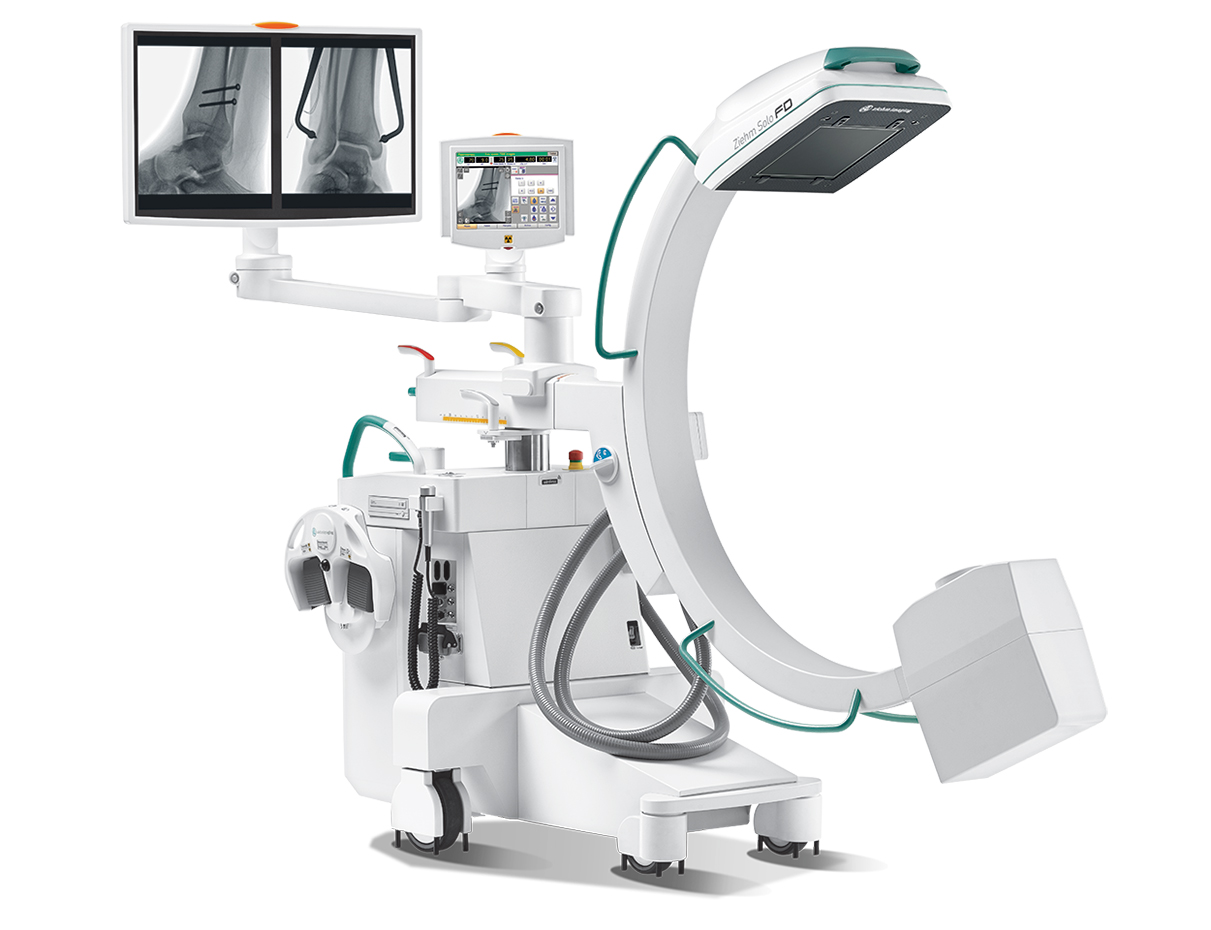

With its all-in-one design, the Ziehm Solo FD is one of the most compact C-arms on the market for even the smallest treatment rooms.

The Ziehm Solo FD is equipped with the latest flat-panel technology – to perform a wide range of applications like orthopedics, trauma, pain management and peripheral vascular with excellent image quality. Versatile viewing options offer maximum flexibility in the OR to support your clinical workflow.

Ziehm Solo FD

Trust in over 15 years of
flat-panel performance

  • 21 cm x 21 cm flat-panel detector and 135 μm pixel size
  • High resolution - 1.5 k x 1.5 k technology and more than 65,000 shades of gray
  • Pulsed monoblock generator provides short, sharp pulses, producing razor-sharp images even if the patient is moving
Ziehm Solo FD

Ensure maximum flexibility with a versatile design

  • Compact all-in-one design without the need for a standalone monitor cart
  • Configurable viewing options to ensure maximum flexibility
  • 165° orbital movement and 34 inch C-arm opening for easier patient coverage
Ziehm Solo FD

Optimize process efficiency with advanced clinical workflows

  • Wireless Freedom concept to increase efficiency and safety in the OR
  • Color-coded scales and handles for unmistakable communication
  • Seamless integration into existing IT networks
Ziehm Solo FD

Reduce exposure significantly with the next-generation SmartDose1 concept

  • Comprehensive dose concept for high image quality and minimized dose
  • Automatic optimization of dose and image quality with advanced anatomical programs
  • Dedicated functions to significantly reduce the exposure in pediatric procedures2
  • Beam Filtration3 for reduced skin entrance dose without compromising on image quality


Ziehm Solo FD

Product Brochure

Solo FD Brochure

Reading duration: 4 min.

Ziehm Solo FD

Product Flyer

Ziehm Solo FD Flyer

Reading duration: 4 min.

Ziehm Solo FD

Product Brochure

Ziehm SmartDose Brochure

Reading duration: 4 min.

Ziehm Solo FD

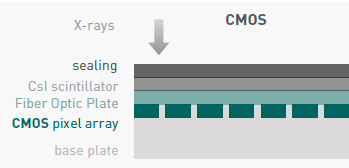

Driving the paradigm shift in innovative flat-panel detector technology, introducing CMOS on mobile full-size C-arms

Reading duration: 10 min.

Ziehm Solo FD

Product Video

Ziehm Solo FD

Video length: 0:51 min.

Technical specifications

Imaging technology

21 cm x 21 cm flat-panel with 135 μm pixel size


1.5 k x 1.5 k

Power generator

2.4 kW, pulsed monoblock generator

Ziehm Usability Concept

check icon


check icon

Advanced Heat Management

check icon

Orbital Movement

165 degrees

Our extensive range of training courses and services

Ziehm Solo FD

Empower yourself and your team to achieve top performance

Ziehm Solo FD

Ensure the best performance
of your C-arm

Are you curious for more?
We are looking forward to getting your inquiry!


  • 1

    In clinical practice, the use of SmartDose may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical practice. A consultation with a radiologist and a physicist should be made to determine the appropriate dose to obtain diagnostic image quality for the particular clinical task.

  • 2

    Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07.

  • 3

    The technology Beam Filtration reduces dose exposure for Ziehm Imaging flat-detector systems in comparison with conventional filtration techniques. Data on File. Results may vary

  • 4

    The Usability Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.

  • 5

    This product/feature might not be commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed. Please contact Ziehm Imaging for detailed information.
