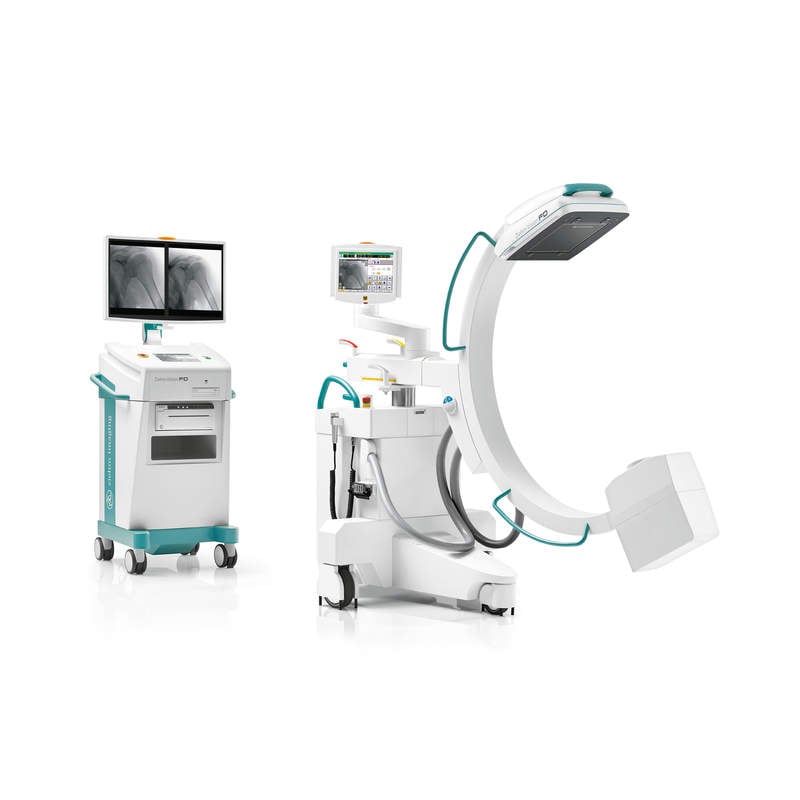

Ziehm Vision FD
Contact Us
Product brochure
The new imaging standard for surgery
The new imaging standard for surgery
Hospitals and outpatient surgery centers around the world face the challenge of operating cost-effectively and adding demanding procedures, such as vascular interventions, to their case mix. The Ziehm Vision FD is the ideal solution for this purpose.

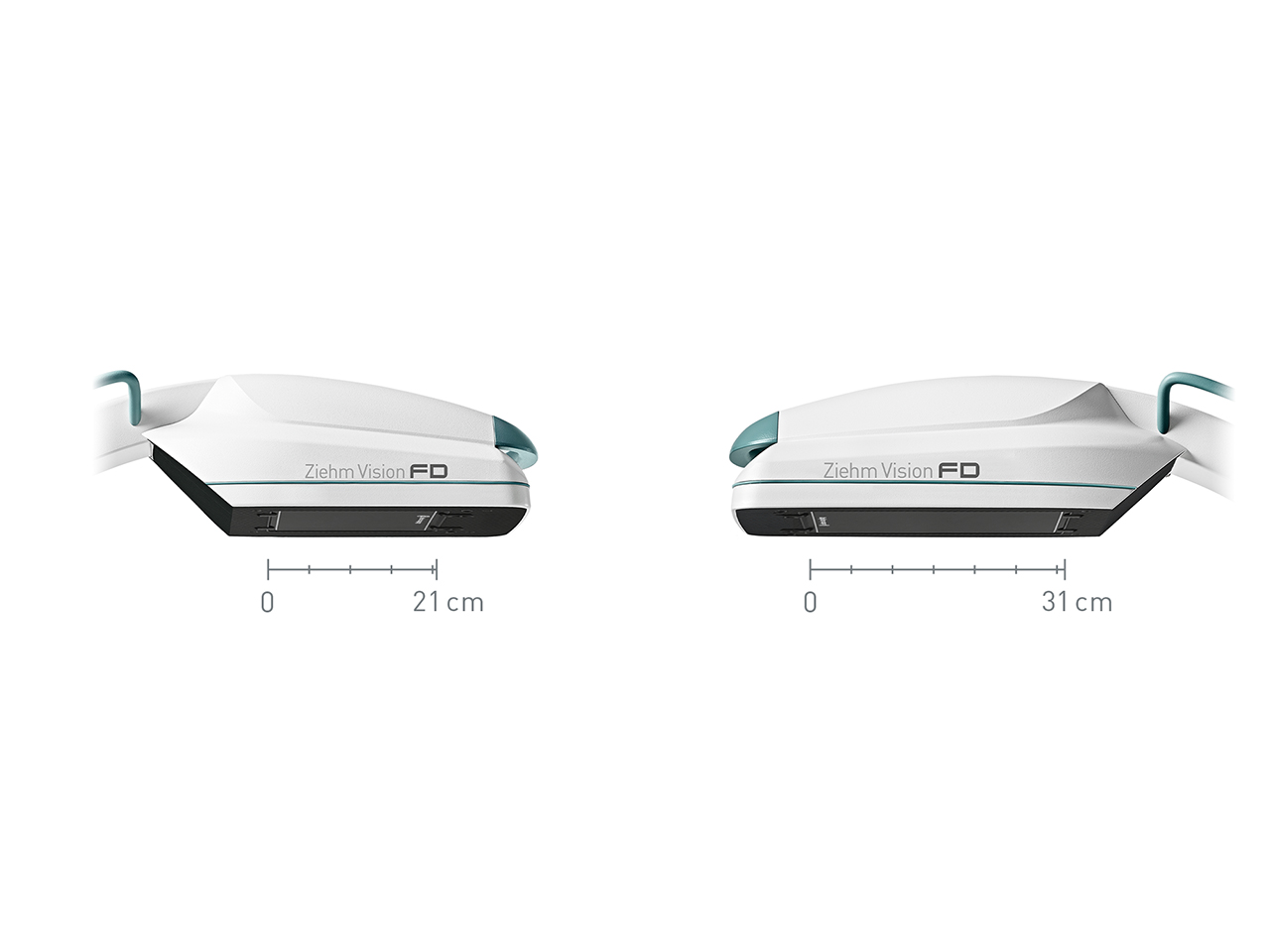

In the CMOSline1,2 version, the Ziehm Vision FD features state-of-the-art CMOS flat-panel technology for excellent image quality and, thanks to its liquid cooling, is even suitable for long-lasting procedures. It is also optionally available with a 31 cm x 31 cm a-Si flat-panel, which allows the visualization of larger anatomical regions in orthopedic and vascular interventions.
CMOS imaging excellence thanks to over 15 years of flat-panel performance
- Latest CMOS flat-panel technology
- Reduced image noise, crystal-clear images in magnification modes, and enhanced dose management
- New standard for state-of-the-art intraoperative visualization
Extend your clinical case mix with enhanced cooling capabilities
- Pulsed monoblock generator with 2.4 kW power performance
- Advanced Active Cooling to keep the generator at an optimum operating temperature
- Wide range of applications to perform even in demanding procedures
Benefit from seamless integration through finely tuned workflows
- Best-in-class ergonomics with a footprint of only 0.8 m² and 165 degrees of orbital movement
- Intuitive and finely tuned workflows for a consistently high and reliable level of quality
- Wireless Freedom concept to increase efficiency and safety in the OR
Reduce exposure significantly with the next-generation SmartDose3
- Comprehensive concept for high image quality and minimized dose
- Automatic optimization of dose and image quality with advanced anatomical programs
- Dedicated functions to significantly reduce the dose for pediatric procedures4
- Beam Filtration5 for reduced patient entrance dose without compromising on image quality

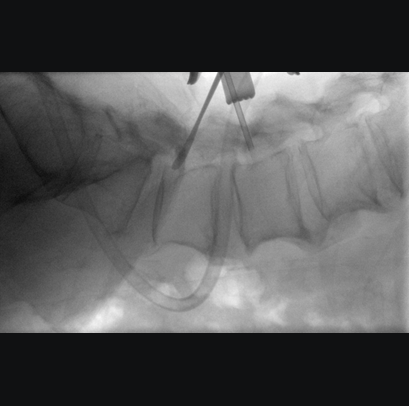

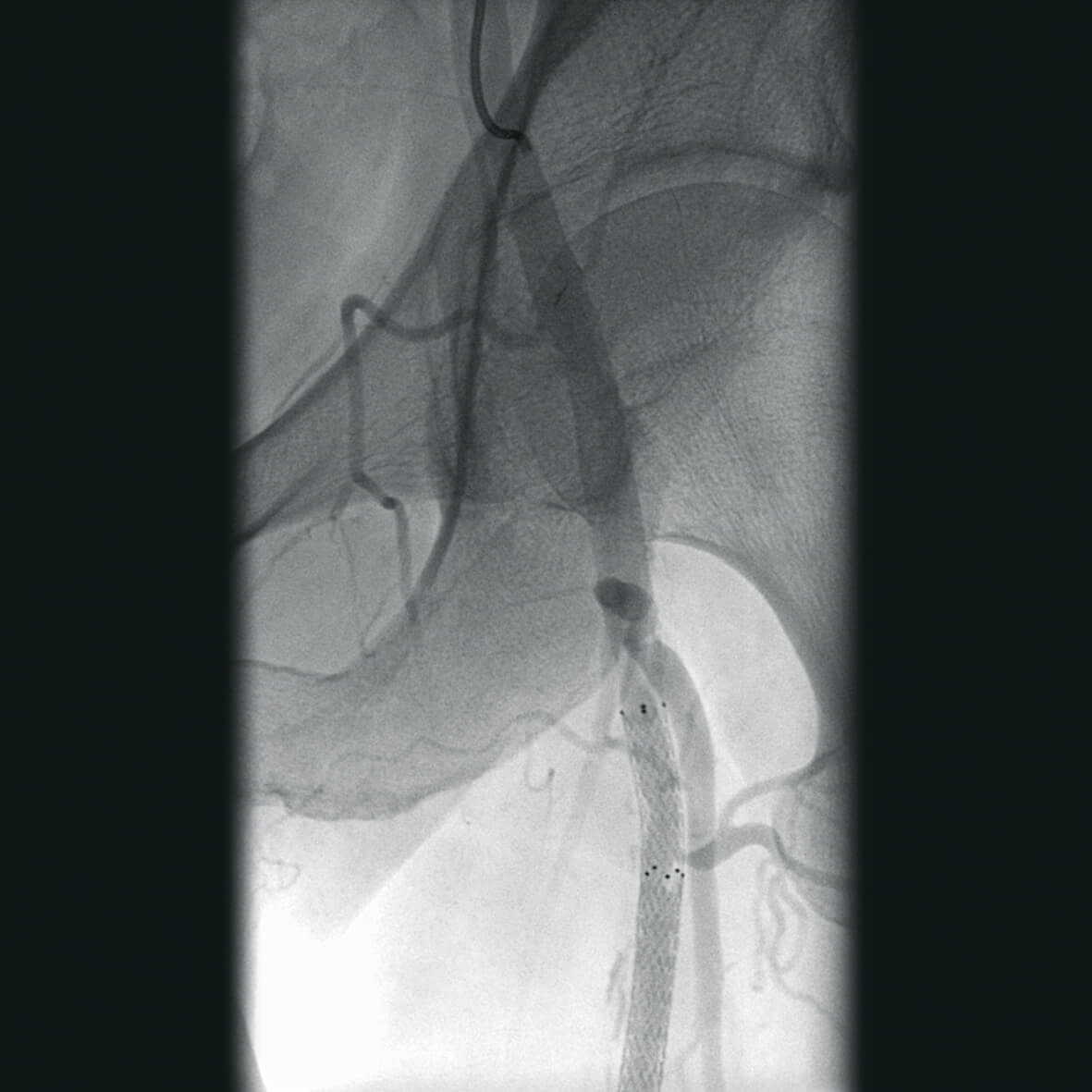

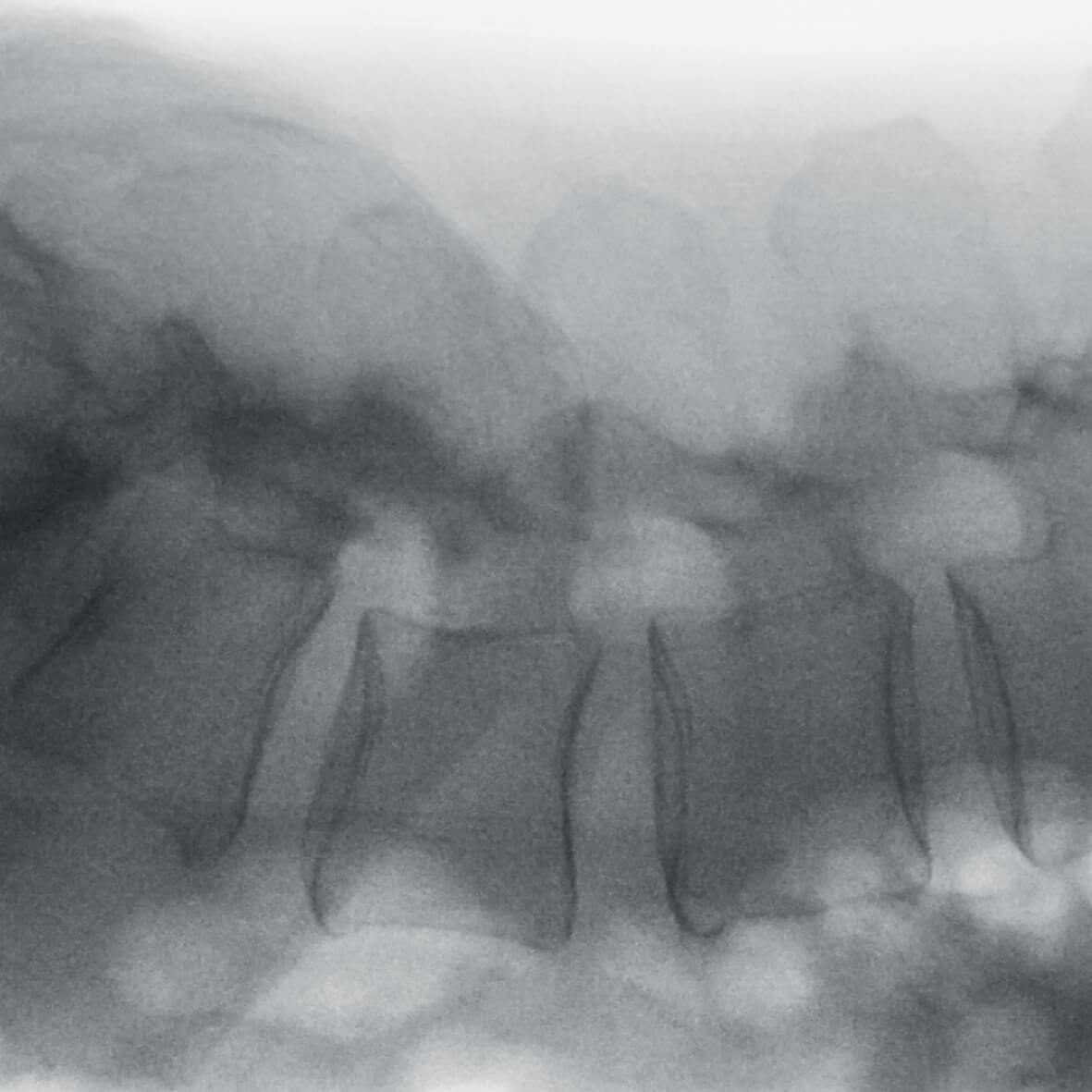

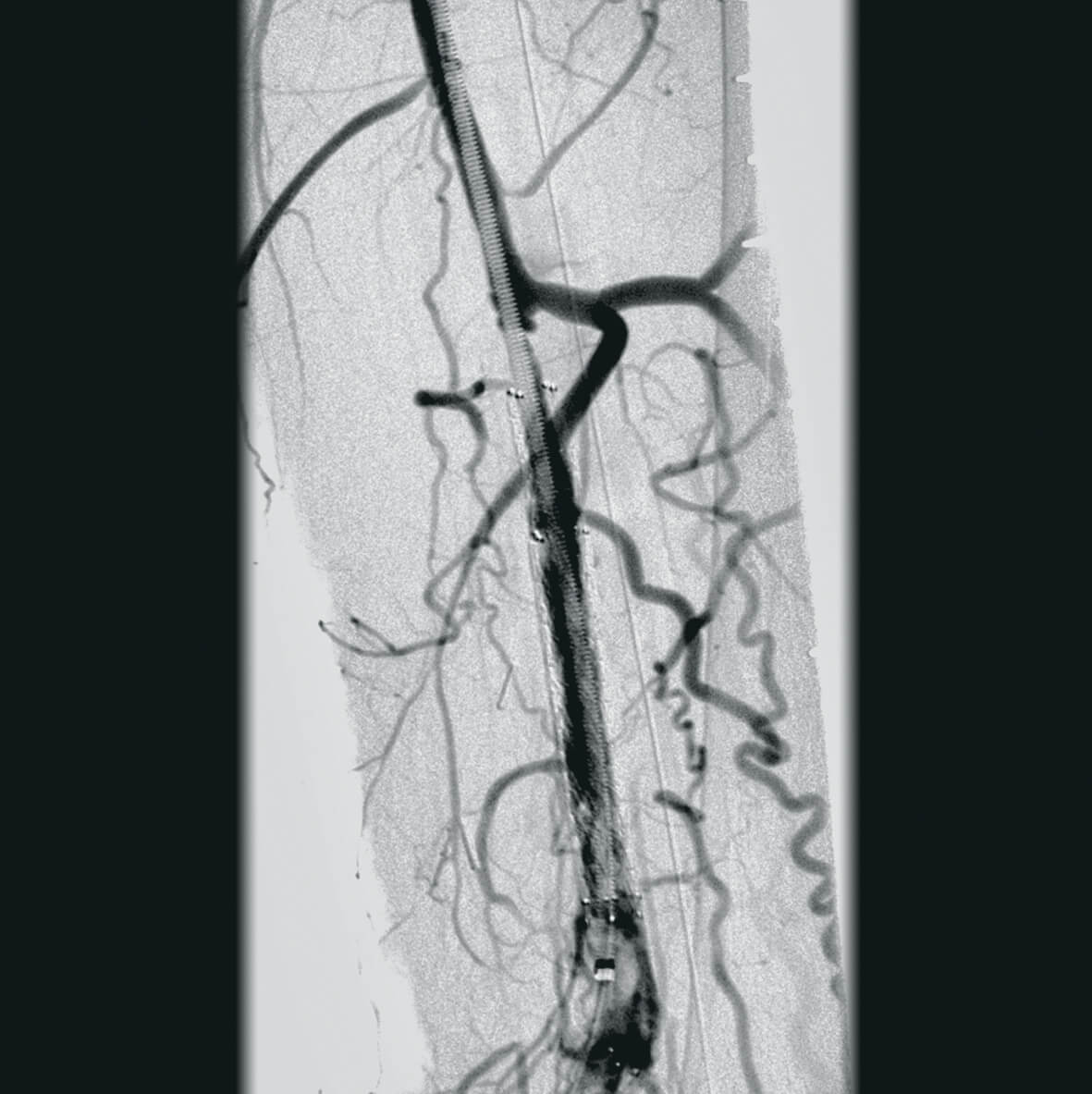

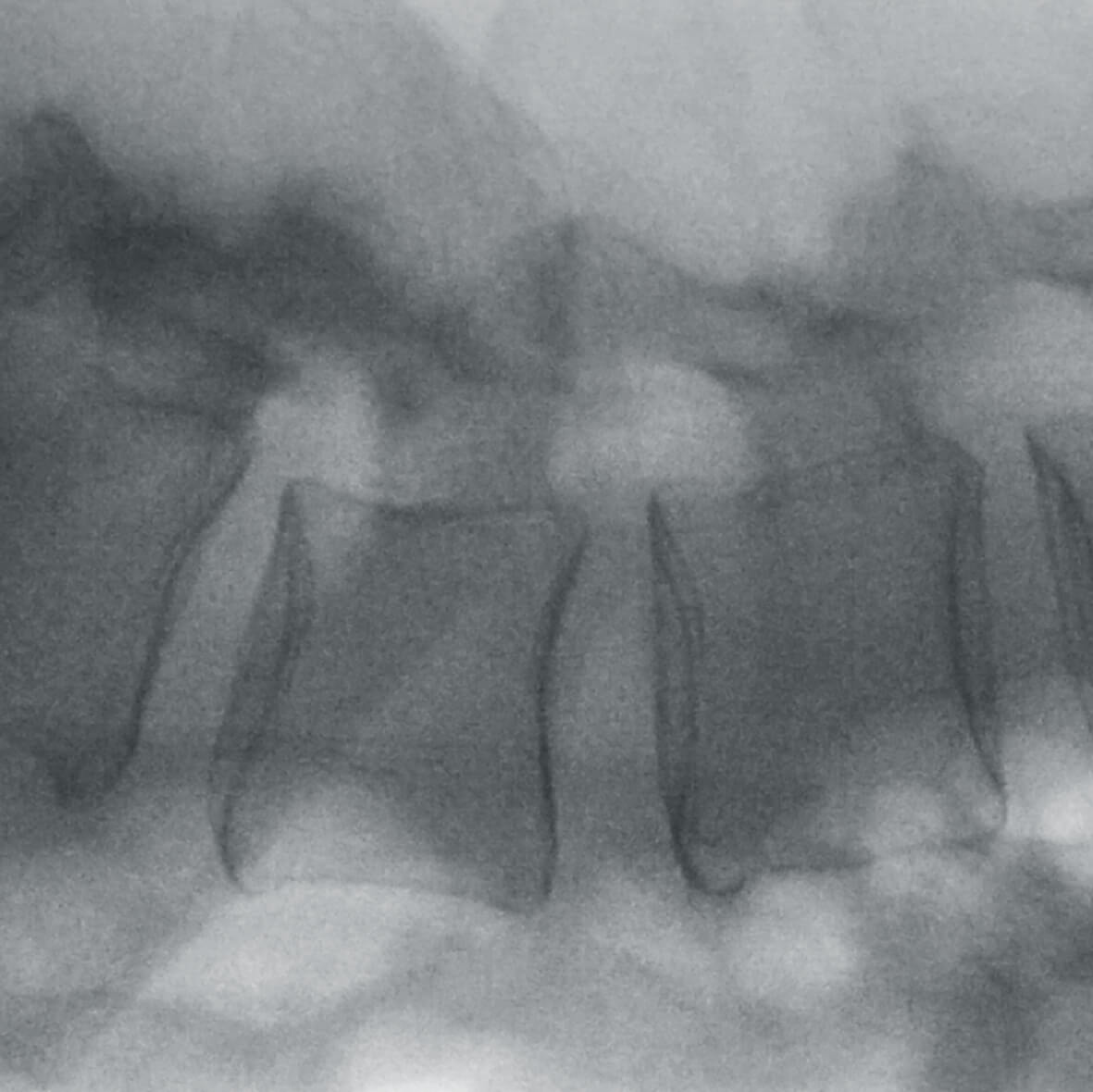

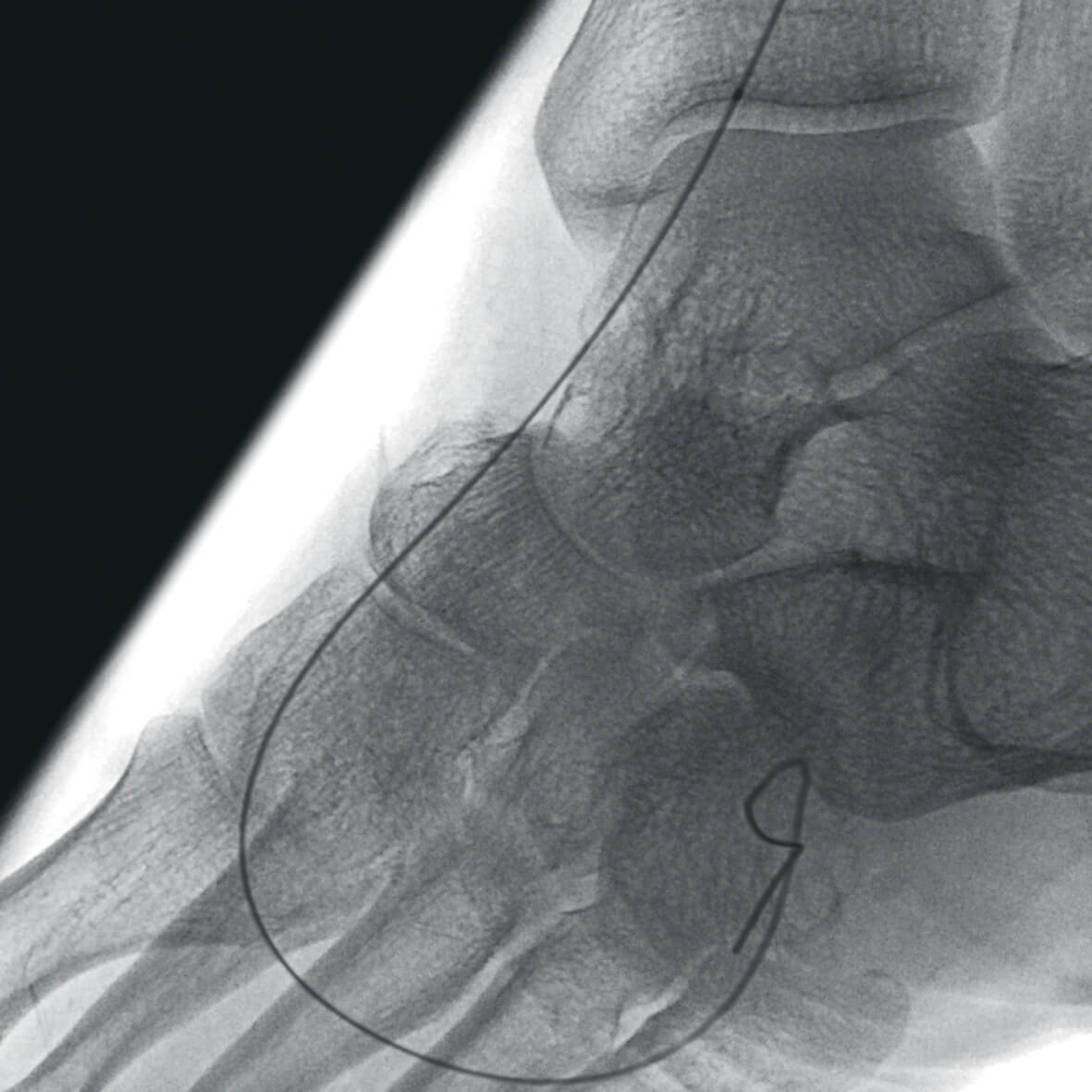

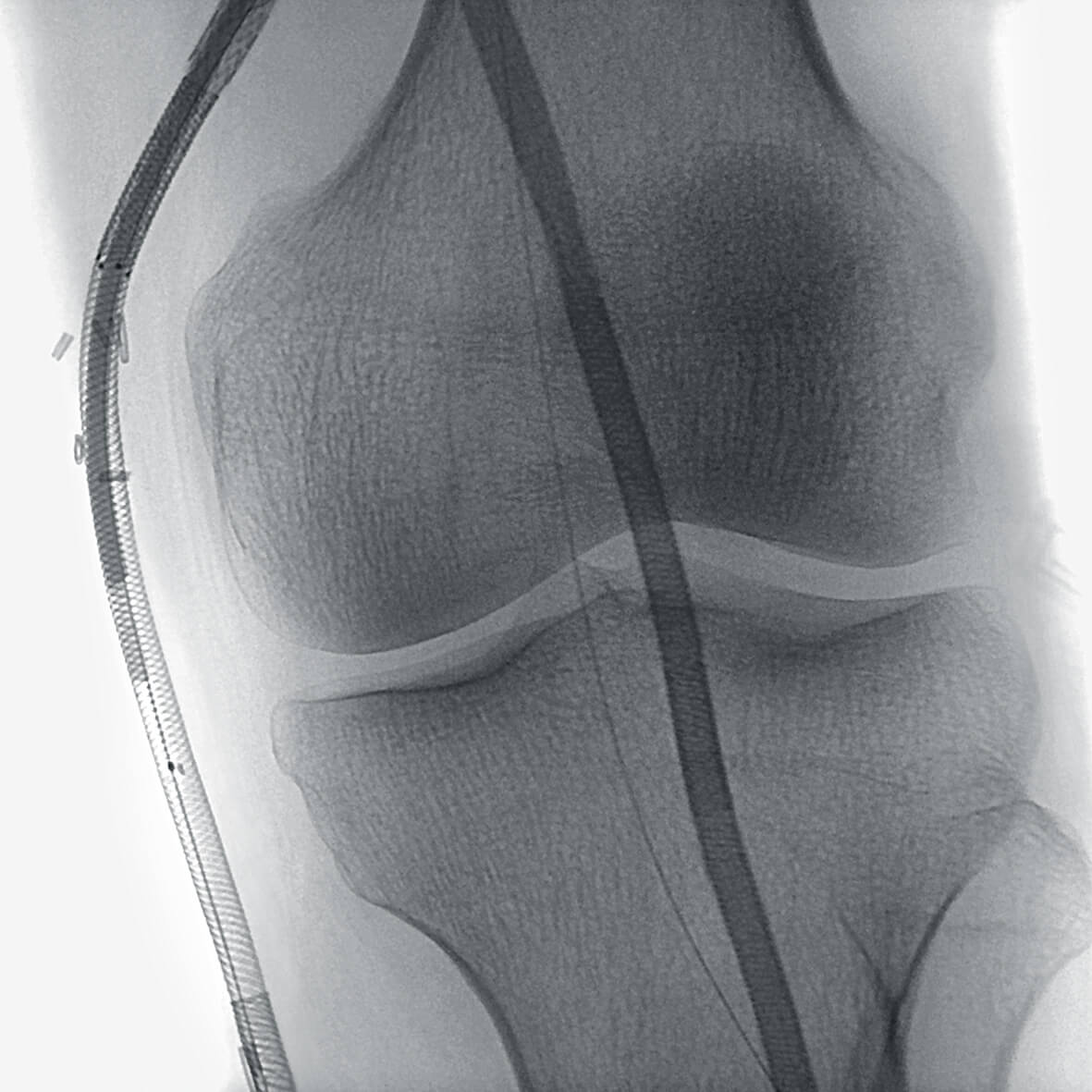

The best clinical images of the
Ziehm Vision FD
Find out more about the many different possible applications in clinical use
Open PDF
Product Video
Video length: 0:48 min.
Individual Upgrades for your requirements
Remote Vision Center (RVC)
Synchronized third Vision Center
Wireless Dual-Plus Footswitch
Wireless control of all imaging functions
Laser Positioning Device
Integrated in flat-panel housing as well as in the generator housing
Removable Grid
Reduce dose in pediatric and other dose-sensitive procedures
Technical specifications
Imaging technology
21 cm x 21 cm flat panel
31 cm x 31 cm flat-panel
Resolution
21 cm x 21 cm: 1.5 k x 1.5 k
31 cm x 31 cm: 2 k x 2 k
Power generator
2.4 kW, pulsed monoblock generator
Ziehm Usability Concept
SmartDose
Advanced Active Cooling
Orbital Movement
165 degrees
Are you curious for more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
The CMOSline is a system configuration based on the Ziehm Imaging CMOS flat-panel detector.
-
2
This product/feature may not be commercially available in all countries. For regulatory reasons, the availability of each feature may vary. Please contact your local Ziehm Imaging representative for detailed information.
-
3
The SmartDose Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
4
Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07.
-
5
The Beam Filtration technology reduces dose exposure for all CMOSline systems compared to conventional filtration techniques (Status before September 2017). Data on file. Results may vary.
