Ziehm Vision RFD Hybrid Edition Cardio
Contact Us
Product brochure
The Mobile CathLab: Groundbreaking alternative to fixed room systems
The Mobile CathLab: Groundbreaking alternative to fixed room systems

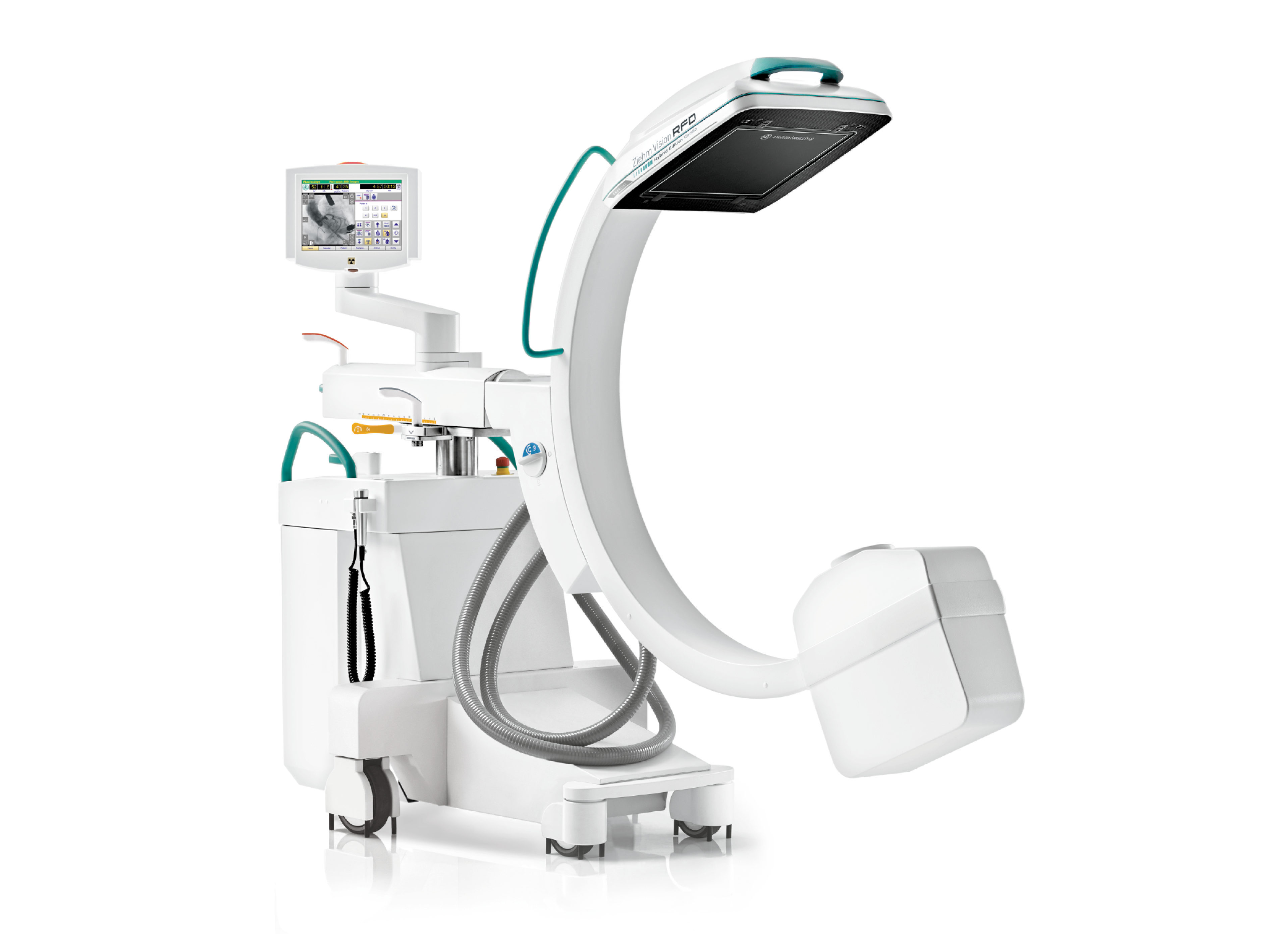

The Ziehm Vision RFD Hybrid Edition Cardio2 is a mobile solution that offers all required qualities to instantly convert conventional ORs into a hybrid room or a mobile CathLab. Compared to a fixed installed system, it features a small footprint and inexpensive operating costs without the need for the planning and construction phase in the OR.
With a powerful 30 kW3 generator providing accurate 30 kW image quality for clinical interventions to complex cardiac or TAVI procedures, the Vision RFD Hybrid Edition Cardio delivers high quality X-ray images that were previously only possible with fixed room systems.
The combination of an industry-leading mobile C-arm with application specific supplements like EndoSize®4 (case planning software), hemodynamic workstations, injectors as well as versatile viewing options instantly convert a mobile C-arm into an all-embracing imaging solution.
Connectivity options for hemodynamic workstations by Fysicon®5 or CathLab-ready monitors complete the mobile CathLab.
The mobile alternative to conventional cardiac CathLabs
- Pulsed monoblock generator with 30 kW power performance, unique on the market for mobile C-arms
- Latest CMOS flat-panel technology
- Connectivity options for EndoSize®4 (case planning software), Fysicon5 (hemodynamic workstations), injectors and versatile viewing options
Rapid return on investment through immediate use of all ORs for cardiology
- Lower acquisition and operating costs compared to fixed installed systems
- Easy and fast setup without OR preparation
- State-of-the-art connection options to all relevant partner systems
Reliable, uninterrupted use even during clinical interventions to complex cardiac procedures
- Advanced Active Cooling to keep the generator at an optimum operating temperature
- Reliable use for clinical interventions to complex cardiac or TAVI procedures
Outstanding image quality and reduced exposure for moving images
- Optimized system settings for dedicated anatomical programs for cardiology and electrophysiology
- Specially developed cardio packages
- Short, sharp pulses for reduced motion artifacts
- Comprehensive SmartDose7 concept for high image quality and minimized dose
- Automatic optimization of dose and image quality with advanced anatomical programs
- Beam Filtration8 for reduced patient entrance dose without compromising on image quality for all CMOSline systems
The best clinical images of the
Ziehm Vision RFD Hybrid Edition Cardio
Downloads
Open PDF
Whitepaper
Reading duration: 10 min.
Product Video
Video length: 4:03 min.
Individual Upgrades for your requirements
Position Control Center (PCC)
Easily operate and move the motorized C-arm entirely in the sterile field
Remote Vision Center (RVC)
Intuitive Touchscreen
User Interface
Removable Grid
Reduce dose in pediatric and other dose-sensitive procedures
Vascular 3D Image Fusion with EndoNaut
Intraoperative navigation system with 3D image fusion to optimize endovascular procedures
Anatomical Marking Tool (AMT)
Colored markings and annotations on live images
Cine Loop
Visualization of multiple fluoroscopy images in a short clip
Enhanced Vessel Visualization (EVV)
Gain new clarity in vascular procedures
Measurement Function
Precise measurement of distances, angles, and vessel lumen
Technical specifications
Imaging technology
20.5 cm x 20.5 cm flat panel with 100 μm pixel size
31 cm x 31 cm flat panel with 100 μm pixel size
Resolution
20.5 cm x 20.5 cm: 2 k x 2 k
31 cm x 31 cm: 3 k x 3 k
Power generator
30 kW, pulsed monoblock generator
Ziehm Usability Concept
SmartDose
Advanced Active Cooling
Orbital Movement
165 degrees
Engine
Full control of the four motorized axes
Vascular 3D-Image-Fusion
EndoSize®, Fysicon QMAPP®
Are you curious for more?
We are looking forward to getting your inquiry!
Disclaimer
-
1
CMOSline represents a system configuration that is based on a Ziehm Imaging CMOS flat-panel detector.
-
2
Ziehm Vision RFD Hybrid Edition represents a group of optional hardware and software that creates an option package on the device named Ziehm Vision RFD.
-
3
30kW generator is available in combination with dedicated cardio packages.
-
4
EndoSize® is a registered trademark of Therenva SAS. EndoSize® sofware obtained a substantial equivalence determination and FDA clearance through the CDRH premarket notification process (510(K)). The information provided in the labelling and manual is intended for healthcare professionals only. Information provided by the EndoSize® Software is not intended to support or replace any medical decisions with respect to the patient’s medical care. The sole and exclusive responsibility for determining the accuracy, completeness or appropriateness of any diagnostics, clinical or medical information provided by EndoSize® resides solely with the healthcare provider. For the safe and successful operation and use of the device, always read the instructions.
-
5
QMAPP® is a registered trademark of Fysicon B.V. In the USA, the QMAPP® software obtained a substantial equivalence determination and FDA clearance through the CDRH premarket notification process (510(k)). In Europe, the QMAPP® software is CE marked (class IIb). The information provided in the labeling and manual is intended for healthcare professionals only. For the safe and successful operation of the device, always read the instructions.
-
6
The Usability Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
7
The SmartDose Concept includes a variety of hardware and software features. For regulatory reasons, the availability of the individual features may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
-
8
The Beam Filtration technology reduces dose exposure for all CMOSline systems compared to conventional filtration techniques (Status before September 2017). Data on file. Results may vary.
-
9
Products/features may not be commercially available in all countries. For regulatory reasons, the availability of each product/feature may vary. Please contact your local Ziehm Imaging representative for detailed information.
