The ultimate C-arm to outperform
The treatment of cardiovascular and degenerative musculoskeletal conditions calls for high-performance intraoperative imaging technologies. With over a decade of flat-panel performance, this C-arm is available in proven a-Si technology or now features the latest CMOS FD technology. The Ziehm Vision RFD is the preferred model for highly demanding orthopedic, trauma or cardiovascular interventions that require more information in one image. Both the a-Si and CMOS systems are equipped with a powerful generator for optimum penetration, Advanced Active Cooling to enable longer procedures and an intuitive operating concept for high clinical standards.
The system Ziehm Vision RFD is now available in the CMOSline1,2 premium edition. All CMOSline systems come with a Ziehm Imaging CMOS detector and the groundbreaking dose reduction technology Beam Filtration3. This combination allows for excellent image quality with a lower dose.
Features
Ensure the best performance of your
C-arm
C-arm
Curious to discover more?
Find a selection of the best clinical images on our interactive image gallery
AT A GLANCE
- Imaging technology

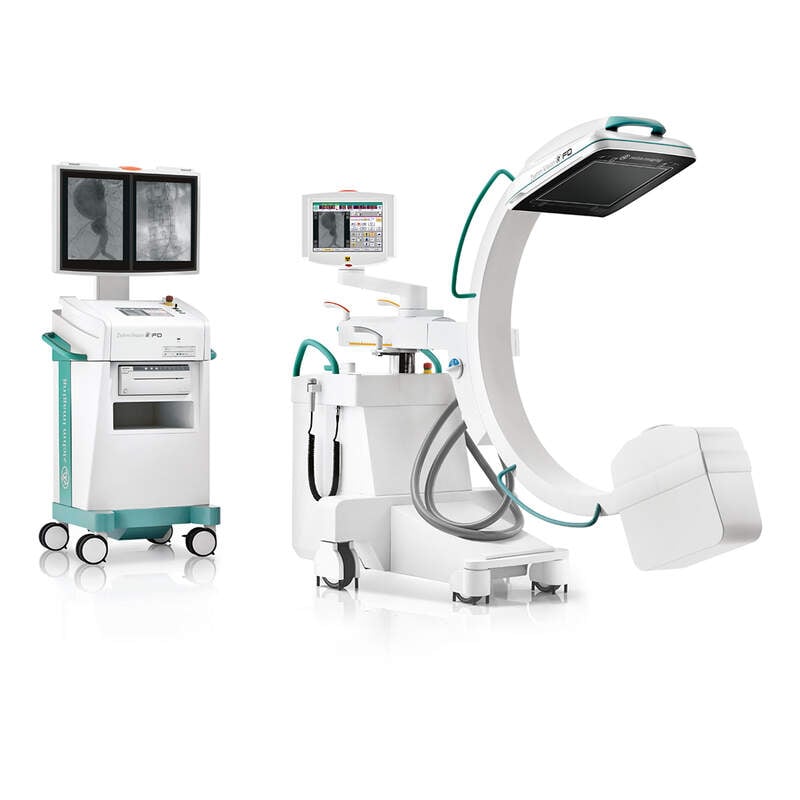

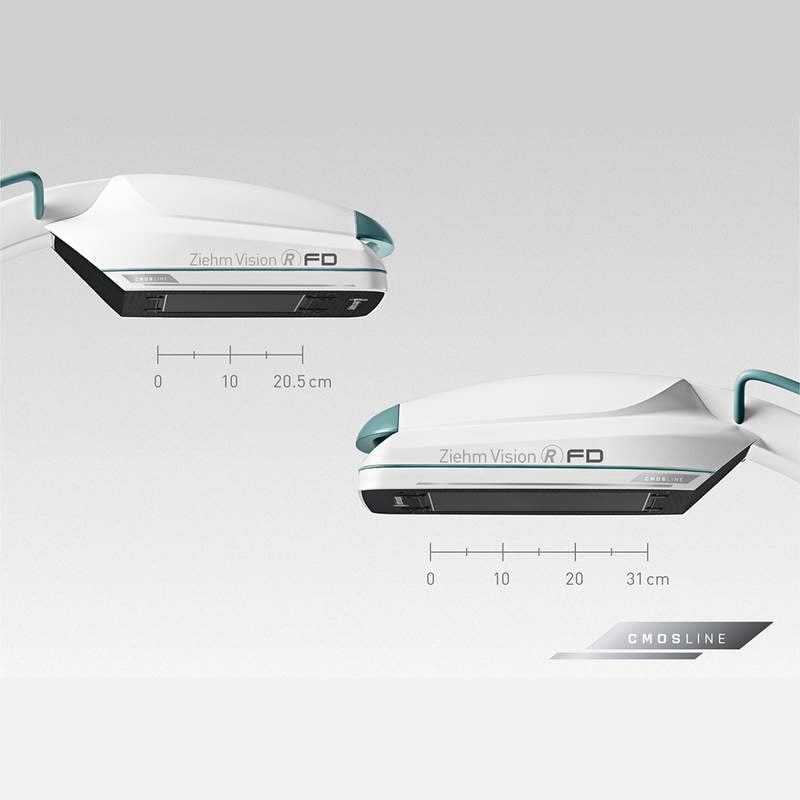

- CMOS, flat-panel, 21 cm x 21 cm / 31 cm x 31 cm

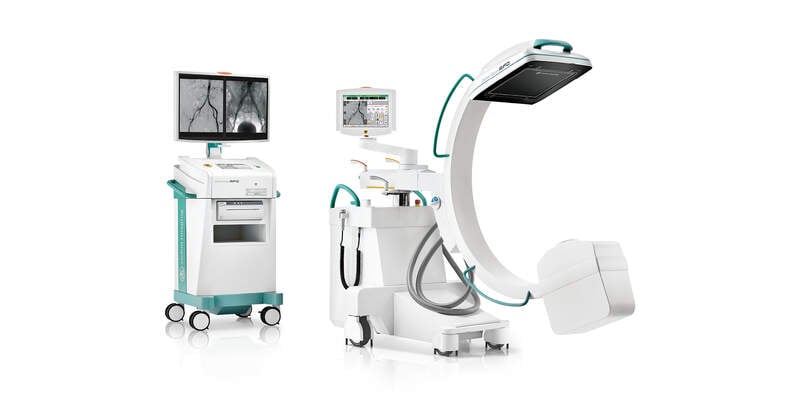

a-Si, flat-panel, 30 cm x 30 cm - Detector resolution
- CMOS: 2 k x 2 k / 3 k x 3 k
a-Si: 1.5 k x 1.5 k - Power generator
- 25 kW, pulsed monoblock generator
- Ziehm Usability Concept
- available
- SmartDose
- available

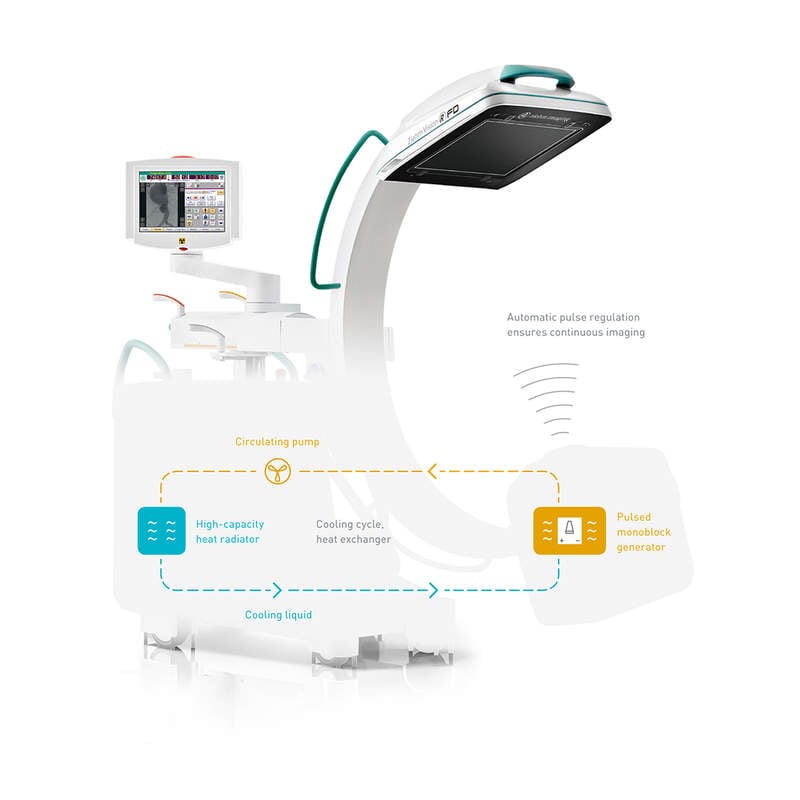

- Advanced Active Cooling (AAC)
- available

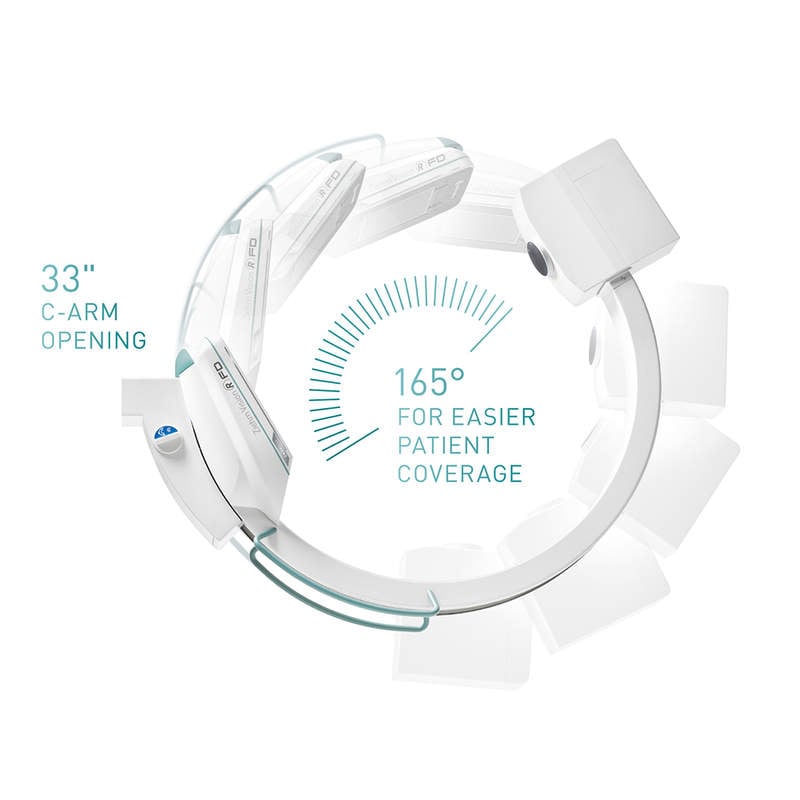

- Orbital Movement
- 165 degrees
Interested in more
Downloads
- Product Brochure pdf – 1 MB
- Product Flyer - Ziehm Vision RFD pdf – 377 kB
- Product Flyer - Articulating Monitor Arm pdf – 283 kB
- Whitepaper: Dose Management for 2D Imaging at Ziehm Imaging pdf – 1 MB
- Whitepaper: Interview Dr. med. Mattes (Ziehm Vision RFD) pdf – 539 kB
- Product Flyer - Ziehm Vision Center pdf – 302 kB
1CMOSline represents a system configuration that is based on a Ziehm Imaging CMOS flat-panel detector.
2This product/feature might not be commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed. Please contact Ziehm Imaging for detailed information.
3The technology Beam Filtration reduces dose exposure for Ziehm Imaging flat-detector systems in comparison with conventional filtration techniques. Data on File. Results may vary.
4In clinical practice, the use of SmartDose may reduce patient dose depending on the clinical task, patient size, anatomical location, and clinical practice. A consultation with a radiologist and a physicist should be made to determine the appropriate dose to obtain diagnostic image quality for the particular clinical task.
5Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07
6The Usability Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.
