The comprehensive mobile hybrid solution

Ziehm Vision RFD Hybrid Edition

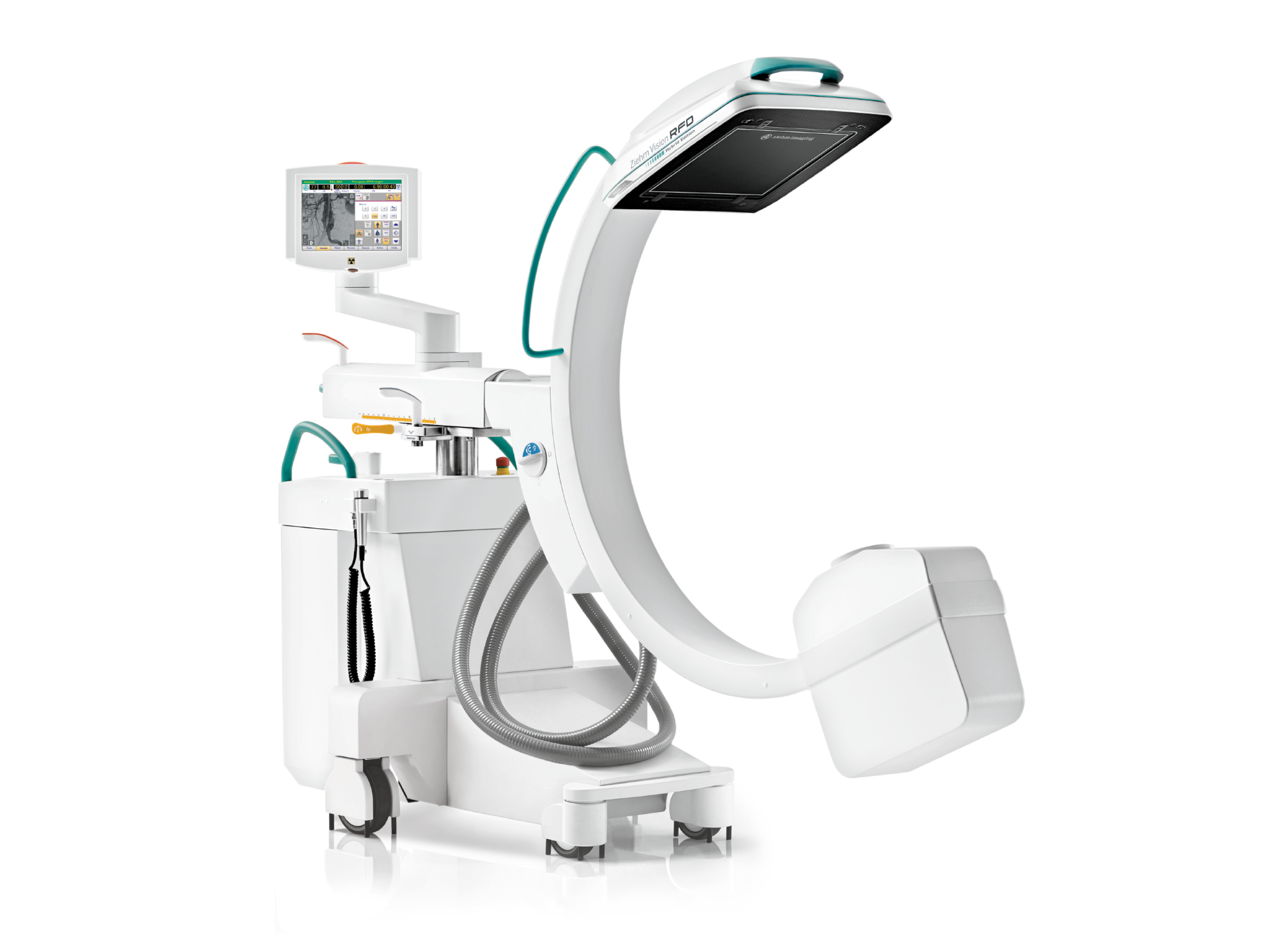

An aging population is creating an increasing demand for cardiovascular surgery. The Ziehm Vision RFD Hybrid Edition1, as a powerful 25 kW mobile C-arm, offers state-of-the-art CMOS technology3 for even better image quality in procedures. It can be used flexibly in terms of space and time. The OR can be expanded to include a complete hybrid solution without the need for costly adaptation of the spatial conditions.

Combined with intraoperative 3D vascular navigation for demanding hybrid procedures in cardiovascular surgery, the system enables greater precision while at the same time reducing the dose.

Ziehm Vision RFD Hybrid Edition

Extend your clinical capabilities in cardiovascular surgery

Ziehm Vision RFD Hybrid Edition

Take your OR to the next level with a mobile hybrid solution

  • Full control of the four motorized axes via the Position Control Center (joystick module) and the Remote Vision Center (touchscreen)
  • Flexible setup of the control modules (Position Control Center and Remote Vision Center) right from the sterile field
  • 165 degrees of orbital movement for easier patient coverage
  • Dedicated SmartVascular workflow for advanced vascular procedures
Ziehm Vision RFD Hybrid Edition

Plug in and start your hybrid procedure without construction work

  • Easy and fast setup without OR preparation
  • Avoidance of complex and expensive planning and construction phases
  • Reduced operating costs in comparison to conventional hybrid ORs
  • The Ziehm Usability Concept4 combines an excellent set of hardware features with seamlessly integrated software functionalities
Ziehm Vision RFD Hybrid Edition

Reduce exposure significantly with the next-generation SmartDose5

  • Comprehensive dose concept for high image quality and minimized dose
  • Automatic optimization of dose and image quality with advanced anatomical programs
  • Dedicated functions to significantly reduce exposure in pediatric procedures6
  • Beam Filtration7 for reduced patient entrance dose without compromising on image quality for all CMOSline systems

Find out more about the many different possible applications in clinical use

Ziehm Vision RFD Hybrid Edition

Product Brochure

Ziehm Vision RFD Hybrid Edition Brochure

Reading duration: 4 min.

Ziehm Vision RFD Hybrid Edition

Product Flyer

Ziehm Vision RFD Hybrid Edition Flyer

Reading duration: 4 min.

Ziehm Vision RFD Hybrid Edition

Product Flyer

Ziehm Articulating Monitor Arm

Reading duration: 2 min.

Ziehm Vision RFD Hybrid Edition

Product Flyer

Ziehm Vision Center

Reading duration: 2 min.

Ziehm Vision RFD Hybrid Edition

Product Flyer

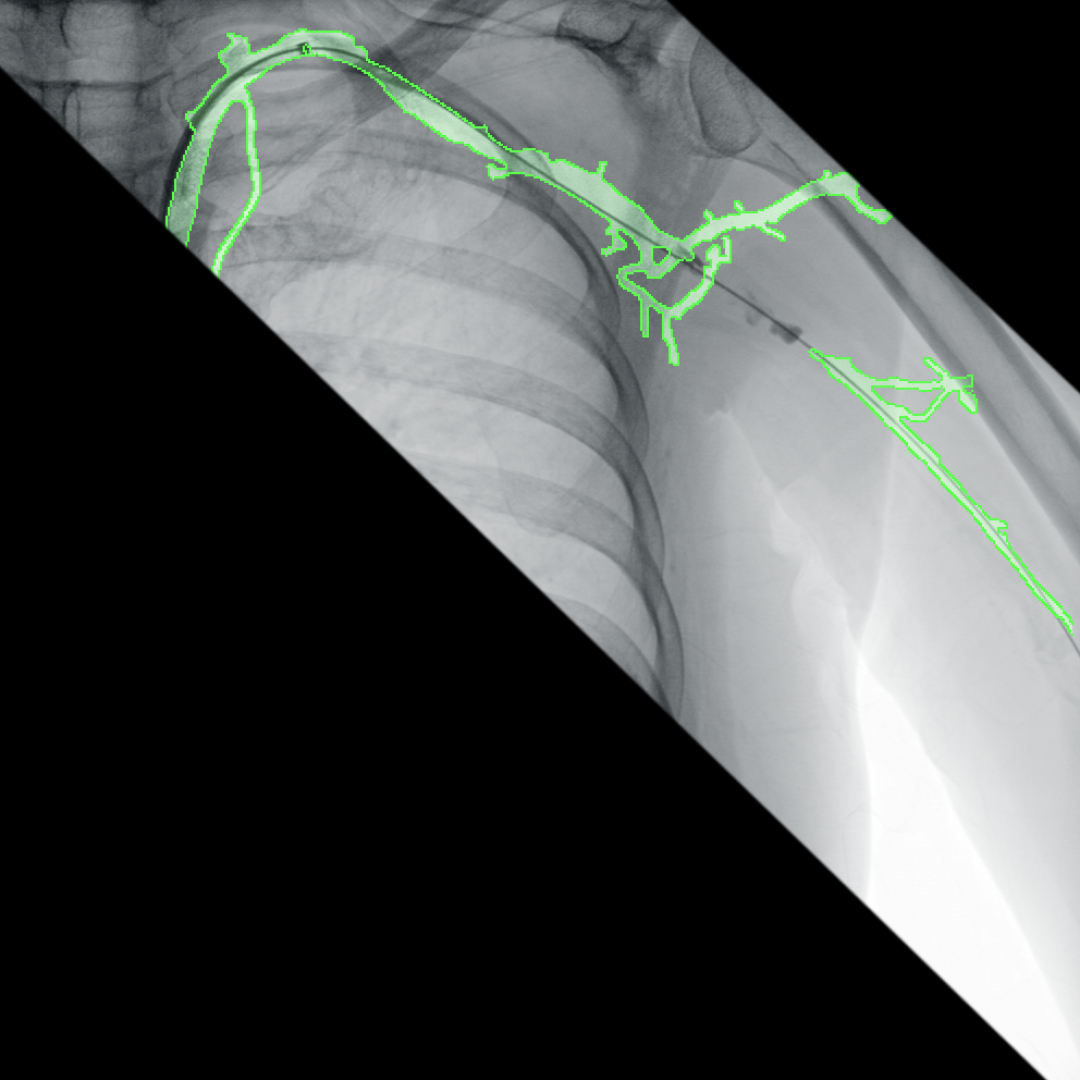

Ziehm Vision RFD Hybrid Edition - Enhanced Vessel Visualization

Reading duration: 4 min.

Ziehm Vision RFD Hybrid Edition

Product Brochure

EndoSize

Reading duration: 4 min.

Ziehm Vision RFD Hybrid Edition

Product Brochure

EndoNaut - Vascular 3D Image Fusion

Reading duration: 4 min.

Ziehm Vision RFD Hybrid Edition

Whitepaper

Ziehm Vision RFD Hybrid Edition: Mobility and flexibility – the difference in an emergency (EN)

Reading duration: 10 min.

Ziehm Vision RFD Hybrid Edition

Product Video

3D image fusion in vascular surgery with EndoNaut

Video length: 4:03 min.

Technical specifications

Imaging technology

21 cm x 21 cm flat panel
31 cm x 31 cm flat panel

Resolution

21 cm x 21 cm: 2 k x 2 k
31 cm x 31 cm: 3 k x 3 k

Power generator

25 kW, pulsed monoblock generator


Ziehm Usability Concept

check icon

SmartDose

check icon

Advanced Active Cooling

check icon

Orbital Movement

165 degrees

Engine

Full control of the 4 motorized axes

Vascular 3D-Image-Fusion

EndoNaut®

Benefit from our extensive range of training courses and services

Ziehm Vision RFD Hybrid Edition

Empower yourself and your team to achieve top performance

Ziehm Vision RFD Hybrid Edition

Ensure the best performance
of your C-arm

Are you curious for more?
We are looking forward to getting your inquiry!

Disclaimer

  • 1

    Ziehm Vision RFD Hybrid Edition represents a group of optional hardware and software that creates an option package on the device named Ziehm Vision RFD.

  • 2

    30 kW generator is available in combination with dedicated cardio packages.

  • 3

    This product/feature might not be commercially available in all countries. Due to regulatory reasons their future availability cannot be guaranteed. Please contact Ziehm Imaging for detailed information.

  • 4

    The Usability Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.

  • 5

    The SmartDose Concept includes a variety of hard- and software features. Due to regulatory reasons the availability of each feature may vary. Please contact your local Ziehm Imaging sales representative for detailed information.

  • 6

    Gosch D. et al. “Influence of grid and ODDC on radiation exposure and image quality using mobile C-arms – First results”, RöFo, 09/07

  • 7

    The technology Beam Filtration reduces dose exposure for all CMOSline systems in comparison to conventional filtration techniques (Status before September 2017). Data on File. Results may vary.
